Product description

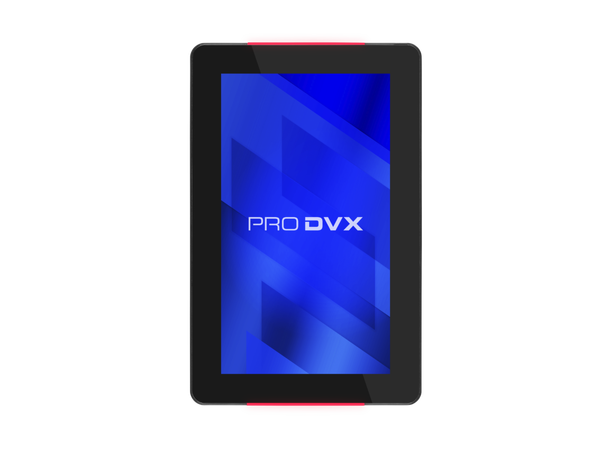

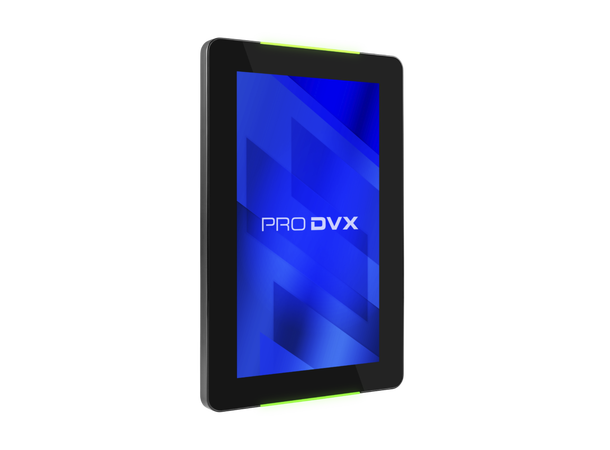

2 sided LED Bar for Room Signage (RGB)
With Power over Ethernet
Cortex A53, Octa Core, RK3368H
Robust eMMC Flash Memory
RJ45 LAN, WiFi

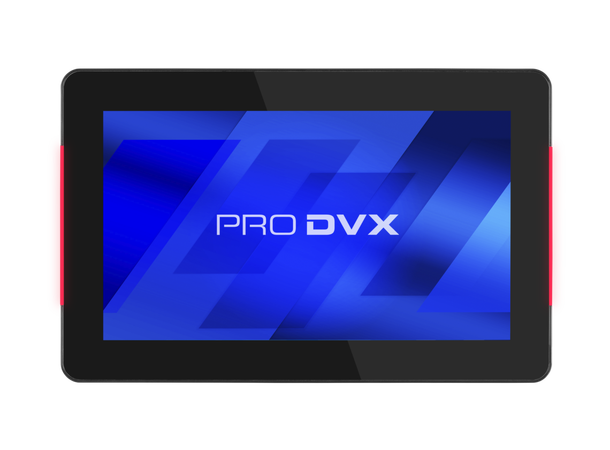

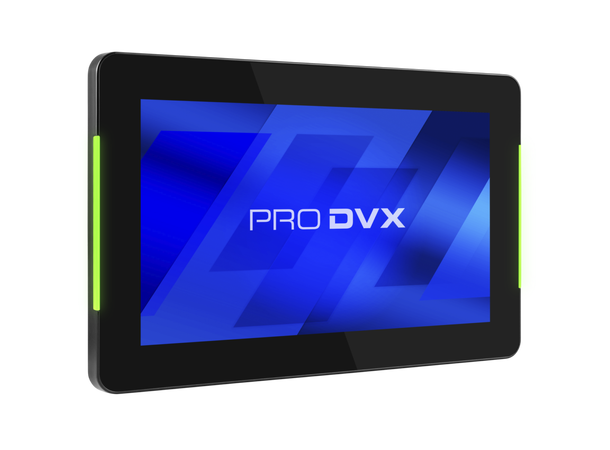

The APPC-7XPL (R23-7261) is a 7-inch Android Panel PC running on Android 12. Powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device ensures seamless operation and advanced graphical capabilities. With 4GB RAM and 16GB storage, multitasking becomes efficient, while IEEE 802.3at PoE+ support streamlines power and connectivity. Installation is a breeze with VESA mounting capability and a single PoE+ Ethernet cable, eliminating wiring complexities. Connectivity is crucial, offering various I/O ports for peripheral devices, making it ideal for retail, corporate, and industrial settings. The 7-inch touchscreen interface, driven by Android, ensures intuitive navigation, complemented by dual-sided RGB LED status lights. This Android Panel PC supports 10-point PCAP touch functionality and has received a non-glare treatment for enhanced visibility.
| Panel |
|
|
|
| Panel
type |
TFT LCD |
| Resolution |
1024 x 600 |
| Aspect ratio |
17:10 wide |
| Backlight |
Edge-LED backlight |
| Brightness |
240 cd/m2 |
| Viewing angle |
H 140° / V 130° |
| Contrast ratio |
800:1 |
| Touch Type |
10 TP Pcap 10ms |
| Treatment |
Non-glare |
| Convenience |
Landscape,Portrait,Table
Mode,Flushmount |
| Operation hours |
24/7 |
|
|
|
|
| System |
|
|
|
| Chipset |
Cortex A55, 2.0 GHz,
4-Core |
| CPU |
RK3568 (Quad-core ARM
Cortex-A55) |
| GPU |
Mali-G52-2EE |
| Cooling |
Fanless |
| System memory |
4 GB DDR4 SDRAM |
| Video input |
N.A. |
| Video resolution |
1024 x 600 |
| Internal storage |
16GB eMMC |
| External storage |
MicroSD-Card Slot
(door) |
| Card slot |
miniSD |
| OS |
Android 12 |
| LED Light Bar |
2 sided LED bar (RGB) |

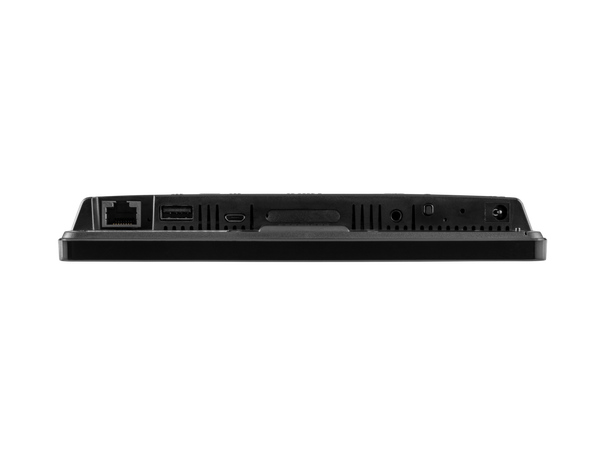

| I/O Ports |
12 V DC-IN,1x Pogo
pin,Combo Jack,USB 2.0,Micro-USB,Ethernet (RJ45) |
| Network LAN RJ45 |
10/100/1000 Mbps LAN |
| WiFi |
802.11 a/b/g/n/ac |
| Bluetooth |
BT 5.0 |
| Power over
Ethernet (PoE) |
IEEE 802.3at (PoE+) |
| Integrated NFC |
via PoGo & USB |
| Camera |
via PoGo & USB |
|
|
|
|
| Video/Audio |
|
|
|
| Video
support |
MPEG2,MPEG4,H.264,MP4,MPG |
| Audio support |
MP2,WMA,WAV,AAC,OGG,ASF,MP3 |
| Photo support |
JPG,JPEG,PNG,BMP,GIF |
| Microphone |
YES |
| Speakers |
2 x 1 W |
| Audio Jack
Output 3.5mm |
YES |
|
|
|
|
| Physical |
|
|
|
| Housing |
ABS+PC (Macrolon) |
| Color |
Black |
| Weight |
500 g |
| Dimensions |
188,1 x 120,3 x 25,2 |

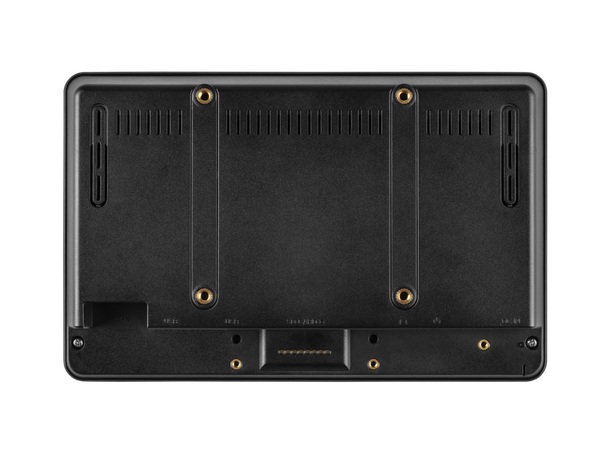

| Mounting / VESA |
VESA 75 |
| Power Supply |
12 V / 2 A |
| Power Supply
Included? |
Optional accessory |
| Power Usage |
6 ~ 23 Watt |
| Pogo Pins |
YES (bottom) |
| Other |
|
|
|
| OSD
Language |
Multi OSD language |
| Clock Battery
(for RTC) |
CR2032 Lithium metal,
non rechargeable |
| Storage Temp |
-10 ~ 55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working
Humidity |
0 ~ 95% non-condensing |
| MTBF |
40,000 hours
demonstrated |
| Standard
Warranty |
3 years |
| Certifications |
UKCA, CE, FCC, RoHS,
REACH |
