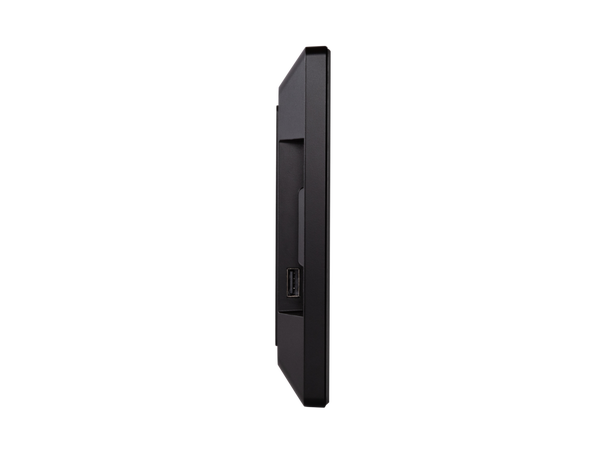

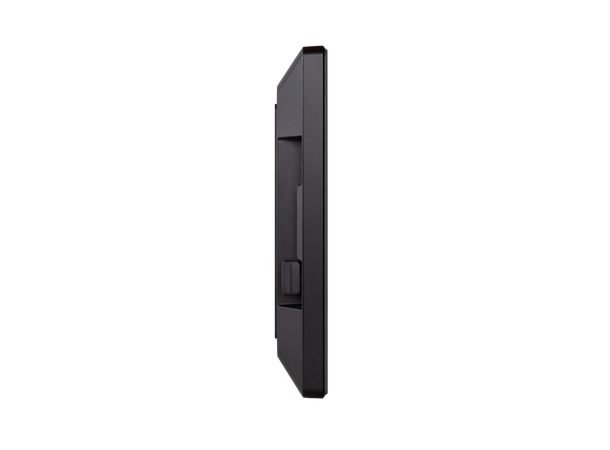

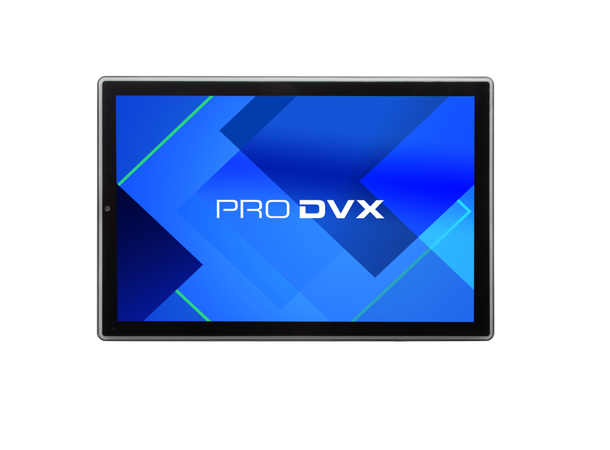

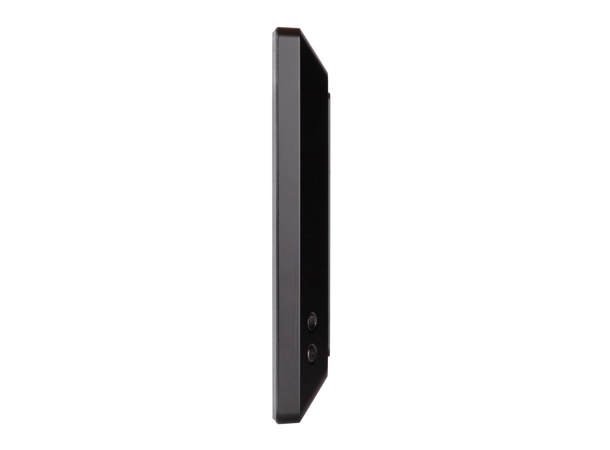

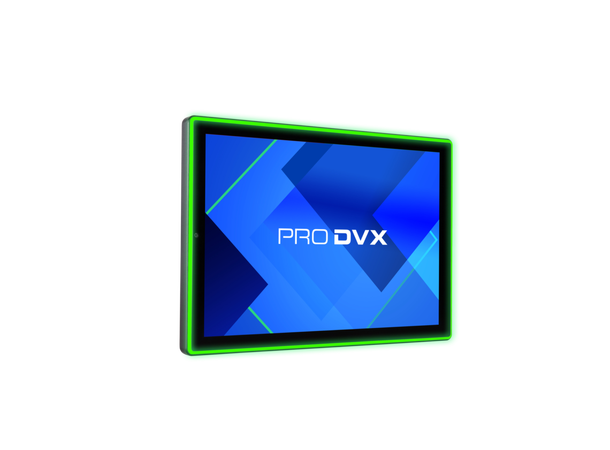

ProDVX APPC-10SFA Slim Bezel LED CAM10", Android 13, PoE, Motion

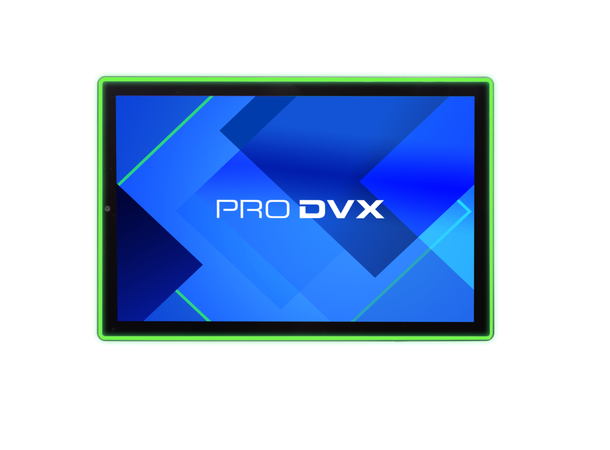

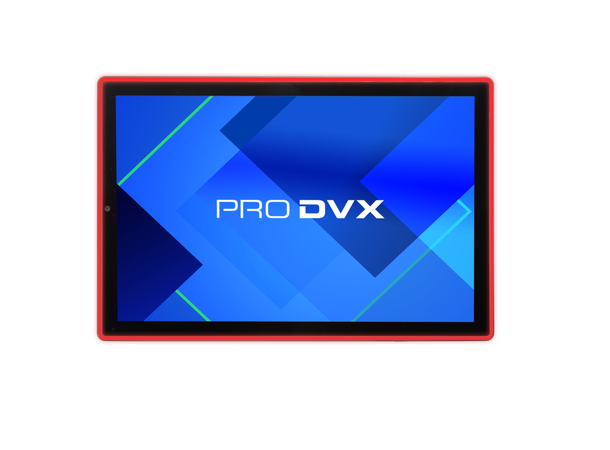

The ProDVX APPC-10SFA is a versatile 10.1” Android Panel PC featuring a Full Surround LED bar, integrated NFC reader, front-facing 5MP camera, and motion radar sensor, designed to meet the needs of interactive and dynamic applications. Powered by the RockChip RK3568 Quad-core processor and running Android 13, it ensures smooth performance with 4GB RAM and 16GB storage, expandable via SD card. The Full Surround LED bar provides customizable RGB lighting for branding or status indication, while the NFC reader (NXP PN7160) enables seamless contactless interactions. The front-facing camera supports applications such as user identification or capturing visual data, and the motion radar sensor enhances automation by detecting proximity for energy-saving or interactive triggers. Its direct-bonded IPS touchscreen with 1280x800 resolution ensures sharp visuals and responsive touch. Additional features like PoE+, fanless cooling, mini-HDMI out, and versatile connectivity options (USB, LAN) make it ideal for retail, hospitality, healthcare, and industrial environments. Built for 24/7 operation with an MTBF of 50,000 hours, this compact yet durable device supports flexible mounting options to meet diverse business needs.

Panel

Panel type	Direct bonded TFT LCD IPS
Resolution	1280 x 800
Backlight	Edge-LED backlight
Brightness	450 cd/m2
Viewing angle	H160 / V160
Contrast ratio	1000 to 1
Touch Type	10 TP Pcap 10ms
Treatment	Non-glare
Convenience	Landscape,Portrait,Flushmount
Operation hours	24h / 7d

System

GPU	Mali-G52
Cooling	Fanless
Video input	N.A.
Video out	Yes, mini-HDMI out
External storage	SD-Card Slot
OS	Android 13

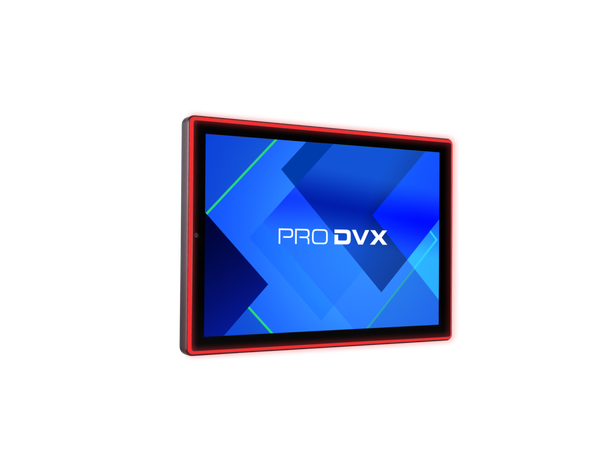

LED Light Bar	Individually controlled Full RGB LED
Network LAN RJ45	10/100/1000 Mbps LAN
WiFi	optional via USB dongle
Bluetooth	optional via USB dongle
Power over Ethernet (PoE)	IEEE 802.3at (PoE+)
Integrated NFC	Integrated NFC reader (NXP PN7160)
Camera	5 M/P front camera

Video/Audio

Video support	H.264,MP4,MPG,MPEG2,MPEG4
Audio support	AAC,ASF,MP2,OGG,WAV,WMA
Photo support	JPG,JPEG,PNG,BMP,GIF
Microphone	Yes
Speakers	2 x 2 W

Physical

Housing	ABS+PC (Macrolon)
Color	Black
Weight	600 g
Dimensions	240,9 x 159,7 x 24,4 mm

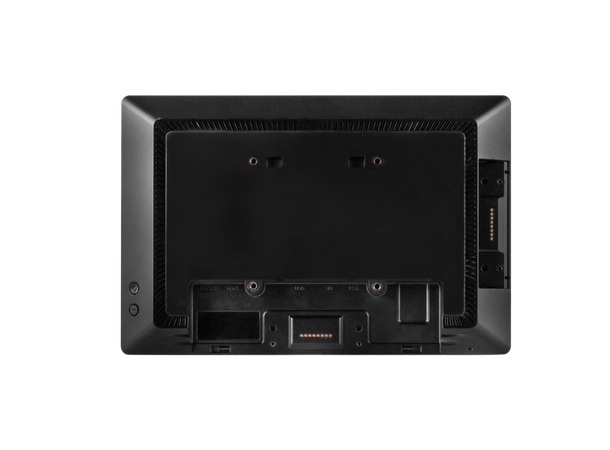

Mounting / VESA	VESA 75
Power Supply	12 V / 2 A (EU, UK, US)
Power Usage	10 ~ 23 Watt
Pogo Pins	2x (bottom/left)

Other

OSD Language	Multi OSD language
Clock Battery (for RTC)	CR1220 Lithium metal, non rechargeable
Storage Temp	-10~55 degrees C
Working Temp	0 ~ 40 degrees C
Storage/Working Humidity	10 ~ 90 % non-condensing
MTBF	50,000 hours demonstrated
Standard Warranty	3 years
Certifications	UKCA, CE, FCC, RoHS, REACH
SKU	5010740
