Product description

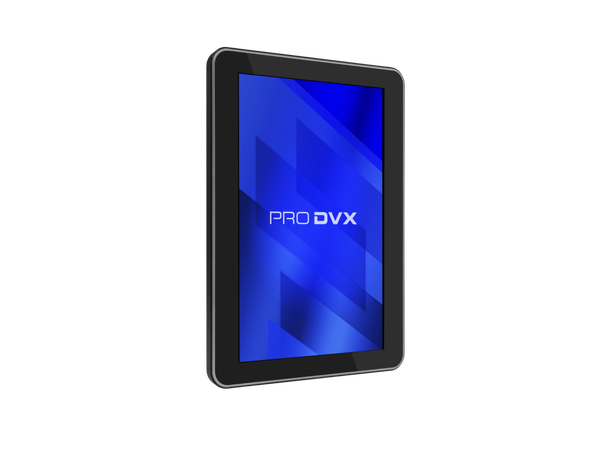

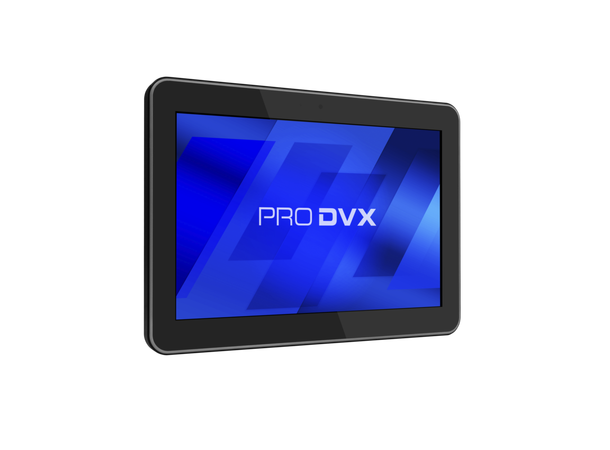

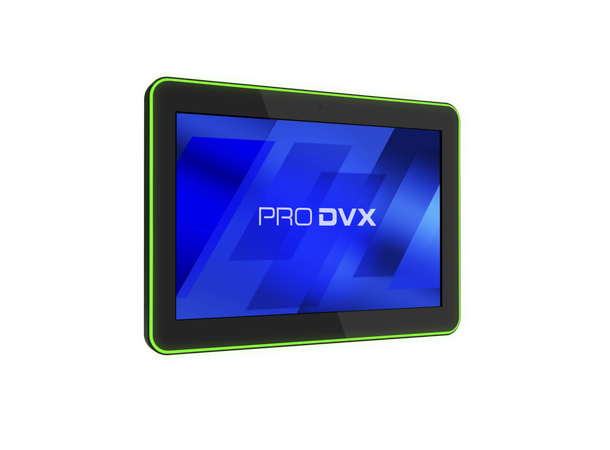

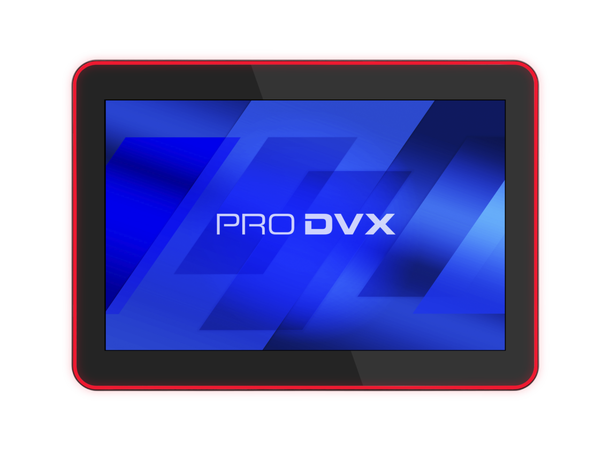

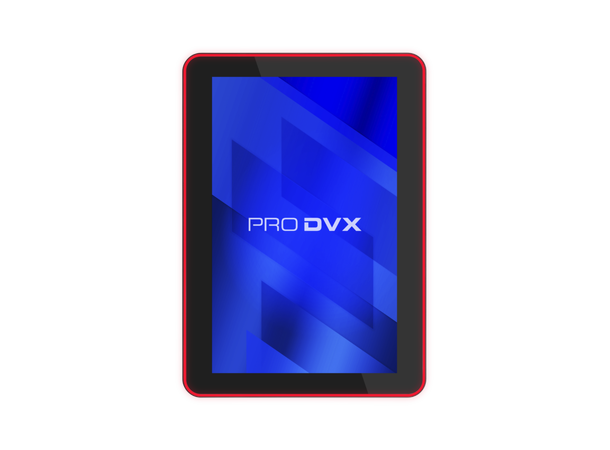

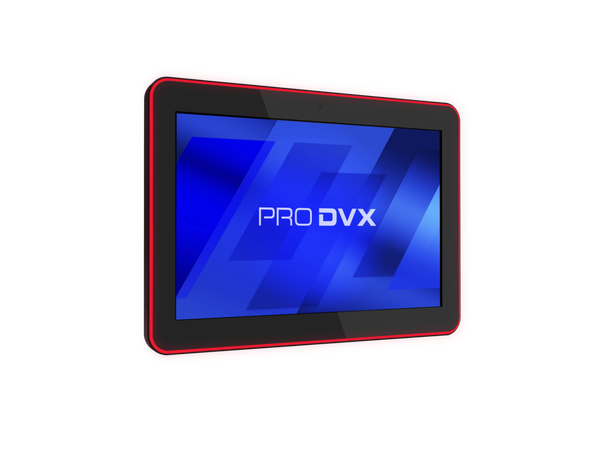

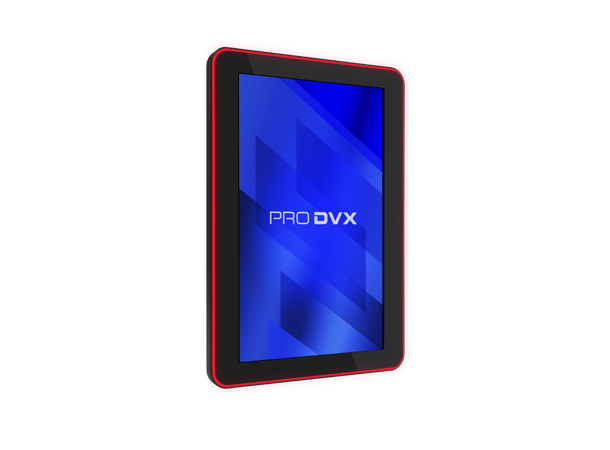

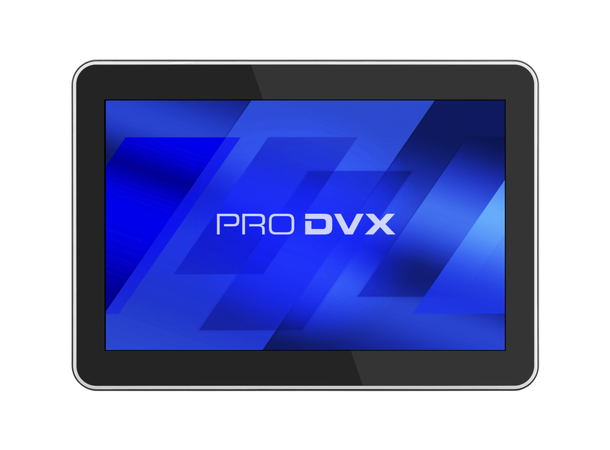

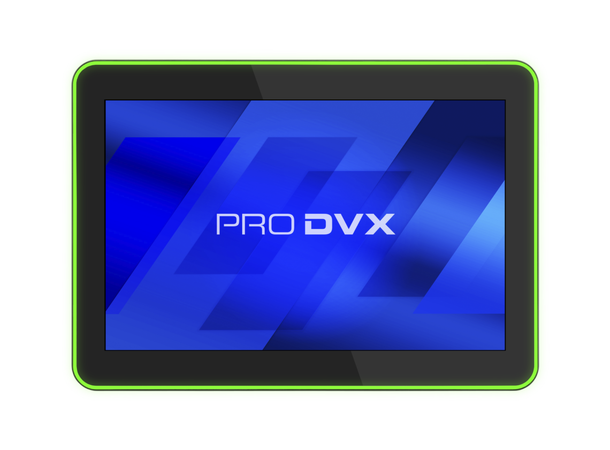

The IPPC-10SLB (R24-6703) is our latest 10-inch Intel Panel PC. Powered by the Intel N50 processor and with 8GB of memory, it is designed for superior performance. Running ChromeOS Flex, the IPPC-10SLB (R24-6703) integrates seamlessly into your existing IT ecosystem. Installation of the IPPC-10SLB (R24-6703) is made easy thanks to its low power consumption and PoE+ capability, removing the need for complex cabling plans by providing both power and data over one cable. Additionally, the VESA mounting frame ensures the device is compliant with most stands and mounts. The IPPC-10SLB (R24-6703) comes with our iconic full RGB surround LED bar to signal status updates or room availability. The touch panel supports 10-point touch functionality, reaches a brightness up to 500 cd/m2 and receives a non-glare treatment. This makes it our most powerful Intel Panel PC to date, and will provide the best user experience there is.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1280 x 800 |
| Aspect ratio | 16:10 wide |
| Backlight | Edge-LED backlight |
| Brightness | 500 cd/m2 |
| Viewing angle | H160 / V160 |
| Contrast ratio | 800 to 1 |
| Touch Type | 10 TP Pcap 10ms |
| Treatment | Non-glare |
| Convenience | Landscape,Portrait |
| Operation hours | 24h / 7d |
System
| CPU | Intel® Processor N50 |
| GPU | Intel UHD Graphics |
| Cooling | Fanless |
| System memory | 8GB DDR4L |
| Video input | N.A. |
| Video out | Yes, HDMI out |
| Video resolution | 1920 x 1080 |
| Internal storage | 128GB SATA SSD |
| External storage | via USB |
| OS | ChromeOS Flex |

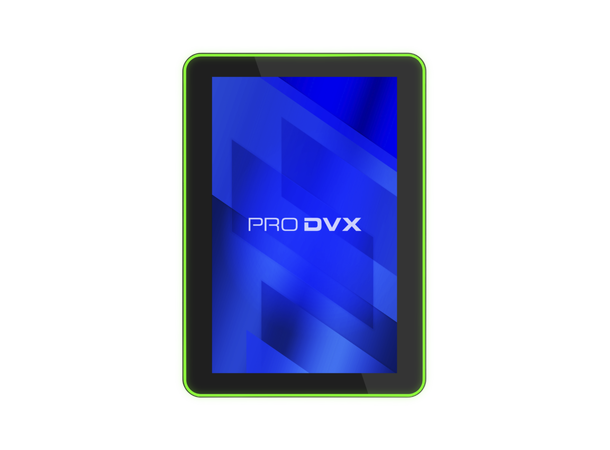

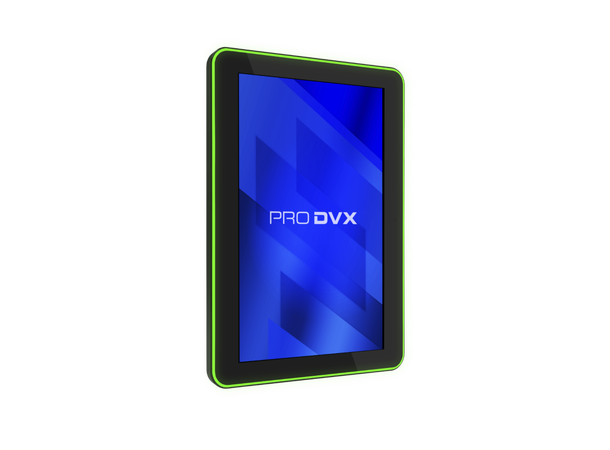

| LED Light Bar | Surround LED Bar (full RGB) |

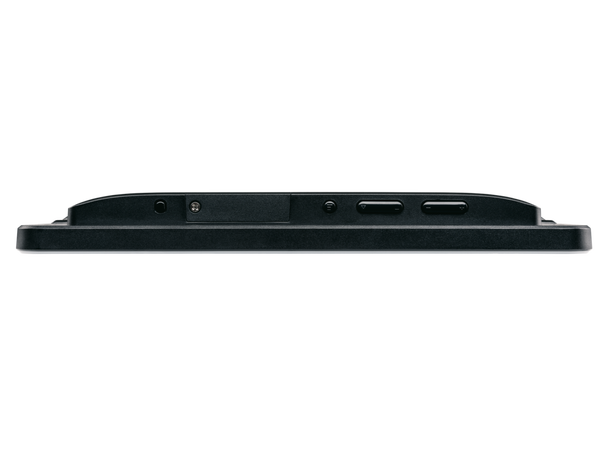

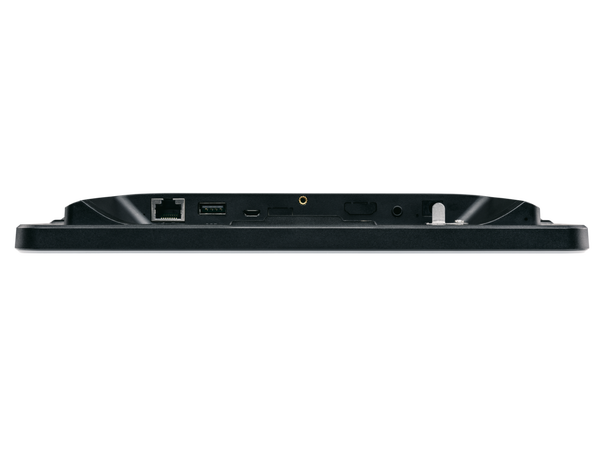

| I/O Ports | 12 V DC-IN,3.5 mm audio-out,RJ45,HDMI out,USB 2.0 |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | optional via USB dongle |
| Bluetooth | optional via USB dongle |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
| Integrated NFC | via PoGo & USB |
| Camera | via PoGo & USB |
Video/Audio
| Video support | AVI,H.264,MKV |
| Audio support | AAC,MP3,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | YES |
| Speakers | 2 x 2 W |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 1025 g |
| Dimensions | 255,3 x 181 x 26,7 mm |

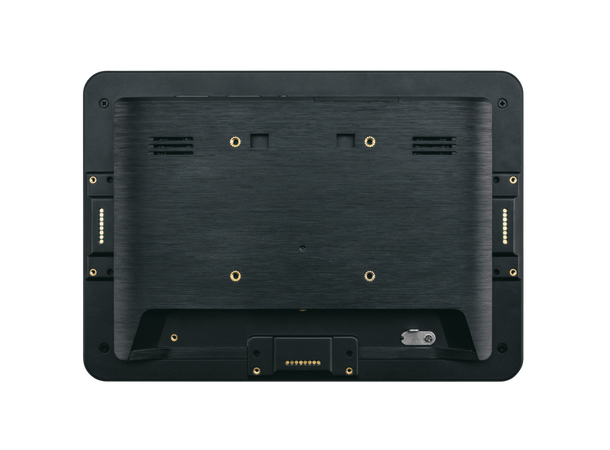

| Mounting / VESA | VESA 75 |
| Power Supply | 12 V / 2 A (EU, UK, US) |
| Power Supply Included? | No |
| Power Usage | 10 ~ 20 Watt |
| Pogo Pins | 3x (bottom/left/right) |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR2032 Lithium metal, non rechargeable |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 45,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| Art. No | 6010470 |
