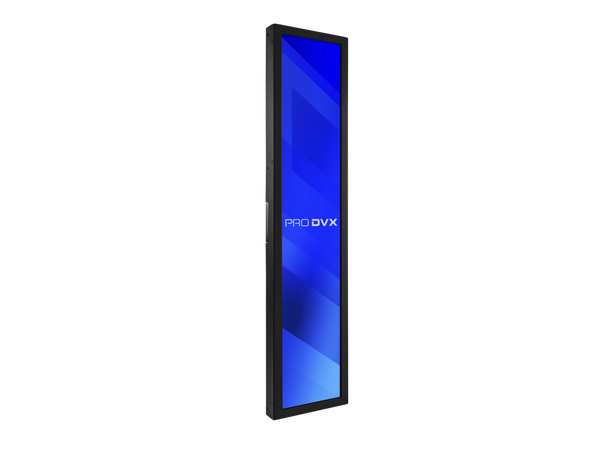

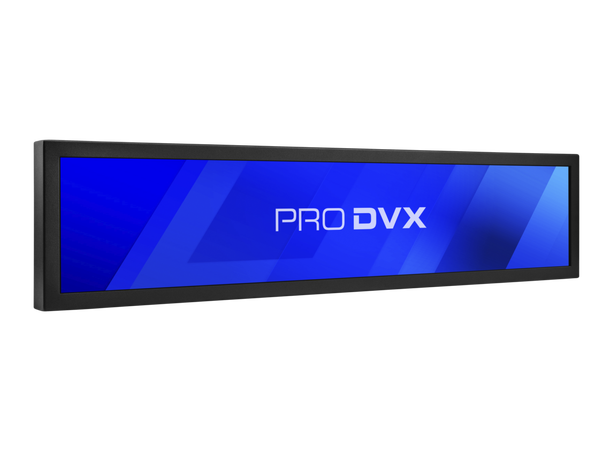

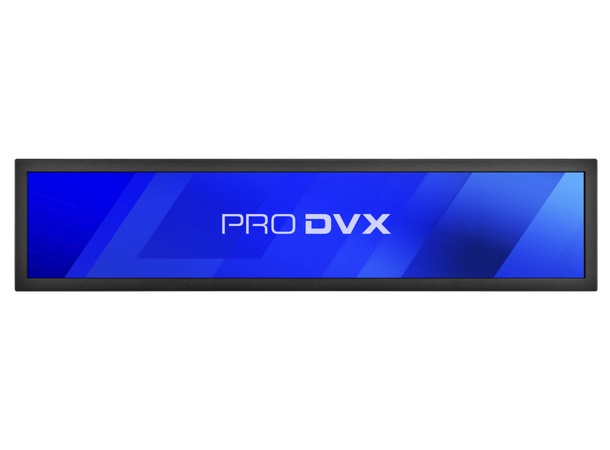

The ProDVX UW-28 (R24-5001) is an all-in-one Android SOC UltraWide Stretch Display. The ProDVX UW-28 (R24-5001) comes with Android 12. This device can be connected through RJ45 LAN, WiFi and Bluetooth. This 28" all-in-one Android SOC UltraWide Signage Stretch Display comes with a special mounting plate and has metal housing.
Panel
| Panel type | TFT LCD IPS |
| Resolution | 1920 x 360 |
| Aspect ratio | 16:3 wide |
| Backlight | Edge-LED backlight |
| Brightness | 700 cd/m2 |
| Viewing angle | H178 / V178 |
| Contrast ratio | 1200 to 1 |
| Touch Type | N.A. |
| Treatment | Non-glare |
| Convenience | Landscape,Portrait |
| Gyro | YES |
| Operation hours | 24h / 7d |
System
| CPU | RK3568 (Quad-core ARM Cortex-A55) |
| GPU | Mali-G52 |
| Cooling | Fanless |
| System memory | 4GB LPDDR4 SDRAM |
| Video input | N.A. |
| Video out | Yes, HDMI out |
| Internal storage | 16 GB eMMC Flash |
| External storage | SD-Card Slot |
| Card slot | SD |
| OS | Android 12 |
| LED Light Bar | N.A. |

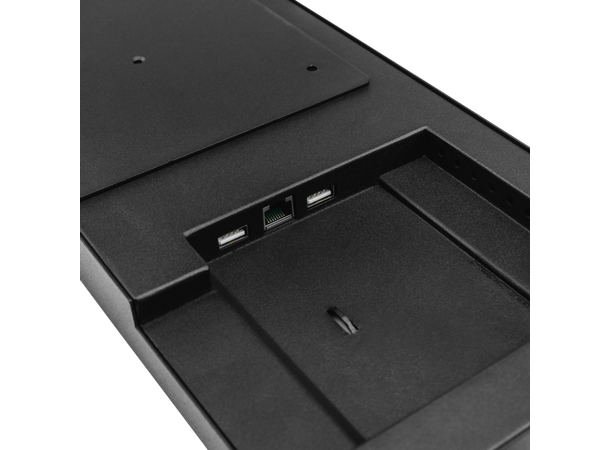

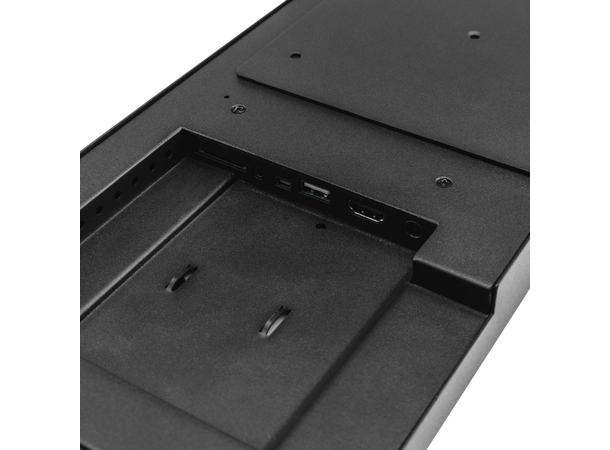

| I/O Ports | 3.5 mm audio-out,Mini-USB,RJ45,HDMI out,12 V DC-IN,3x USB 2.0 |
| Network LAN RJ45 | 10/100/1000 Mbps, RJ45 |
| WiFi | 802.11 b/g/n |
| Bluetooth | BT 4.2 |
| Power over Ethernet (PoE) | N.A. |
| Integrated NFC | via USB |
| Camera | via USB |
Video/Audio
| Video support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | via USB & 3.5mm jack |
| Speakers | via USB & 3.5mm jack |
| Audio Jack Output 3.5mm | YES |
Physical
| Housing | Metal |
| Color | Black |
| Weight | 4550 g |
| Dimensions | 735,1 x 168,1 x 33 mm |

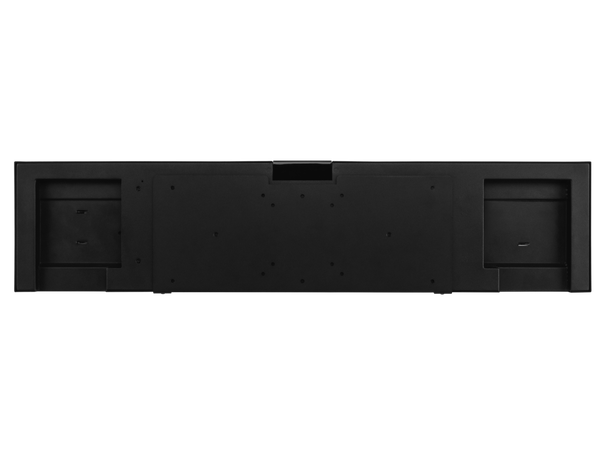

| Mounting / VESA | VESA unique pattern |
| Power Supply | 12 V / 4 A |
| Power Supply Included? | Yes |
| Power Usage | 11 ~ 19 Watt |
| Pogo Pins | N.A. |
Other
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR2032 Lithium metal, non rechargeable |
| Storage Temp | -10~55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 45,000 hours demonstrated |
| Standard Warranty | 2 years |
| Certifications | FCC, CE, RoHS |
| Art. No | 5528105 |
