BrandSONANCE
Product CategoryProfessional Series
TypeSpeaker
Speaker AestheticFlush / Trimless
Speaker ShapeRectangle
Speaker Size8"
ColorBlack
WarrantyLIMITED FIVE (5) YEAR
Power Handling200 watts program, 125 watts pink noise
Crossover Point150Hz
Frequency Response (+/- 10dB)32Hz – 300Hz
Frequency Response (+/- 3dB)50Hz - 150Hz

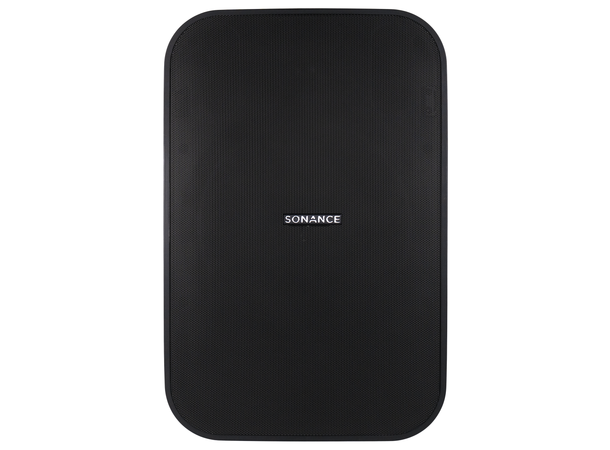

Grille MaterialPowder Coated Aluminum Friction Fit
HiZ/LoZ70V/100V, 8 Ohm

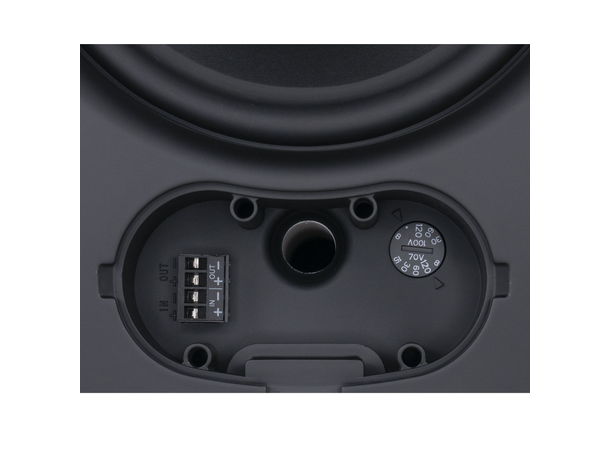

Input ConnectorFront-mounted four pin, Euroblock with loop output connections
Installation LocationSurface Mount
IP RatingIP45

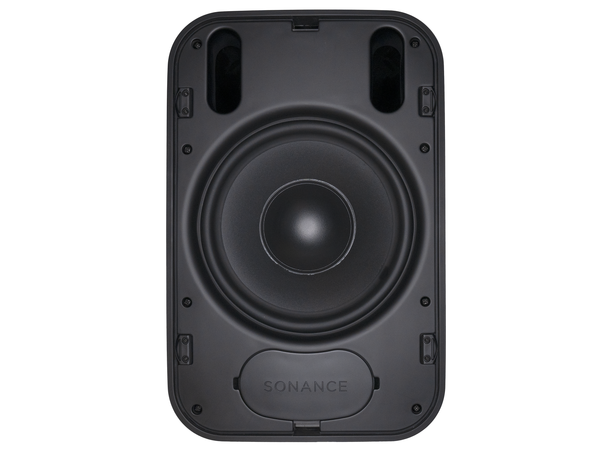

LF Driver8" (203mm) Polypropylene Cone, Butyl Rubber Surround
Minimum Impedance6 Ohms
Mounting Bracket Height14.528" (369.01 mm)
Mounting Bracket TypeU-Bracket with Sonance FastMount
Mounting Bracket Width4.527" (114.99 mm)
Mounting Depth - Bracket Ceiling Mount10.315" (262.0 mm)
Mounting Depth - Bracket Wall Mount9.37" (238.0 mm)
Nominal Impedance8 Ohms
Operating HumidityConforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529
Product Depth8.58" (217.93 mm)
Product Dimensions (WxHxD)9.01" x 14.02" x 8.58" (228.85 mm x 356.11 mm x 217.93 mm)
Product Height14.02" (356.11 mm)
Product Width9.01" (228.85 mm)
Rated Maximum SPL110dB @ 1 meter (3.3 feet), 116dB peak
Sensitivity88dB (2.83V/1m)
Shipping Dimensions WxHxD9.02" x 8.58" x 14.02" (229.11 mm x 217.93 mm x 356.11 mm)
Shipping Weight16.98 lbs. (7.7 kg)
Transformer Taps70 V / 100 V: 120W, 60W and 30W
70 V: 15W
