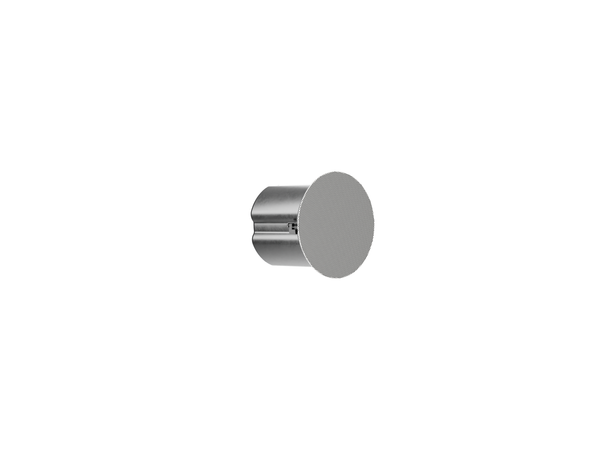

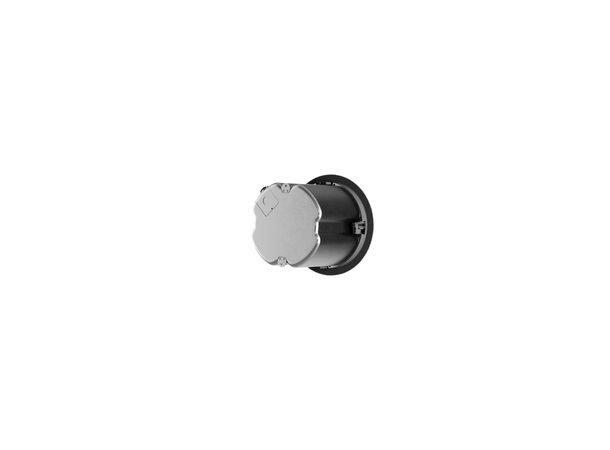

The PS-C85RT is a high-output in-ceiling loudspeaker engineered for demanding commercial environments. Featuring an 8" aluminum cone woofer, 1.4" neodymium compression driver, and selectable horn or collar dispersion, it delivers 93dB sensitivity and up to 117dB SPL with full 70V/100V distributed audio compatibility.
Key Features
- Field-selectable 120° or 80° dispersion coverage

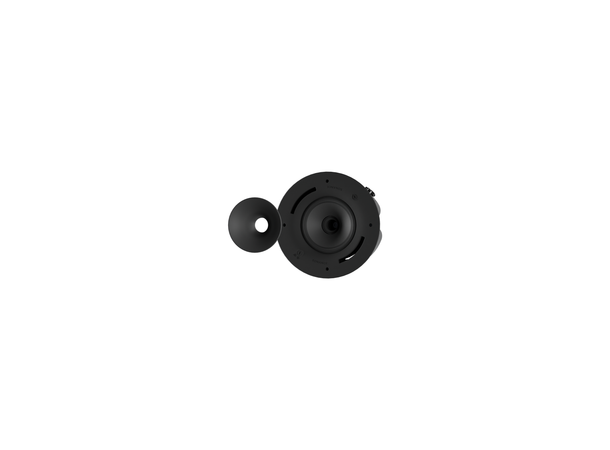

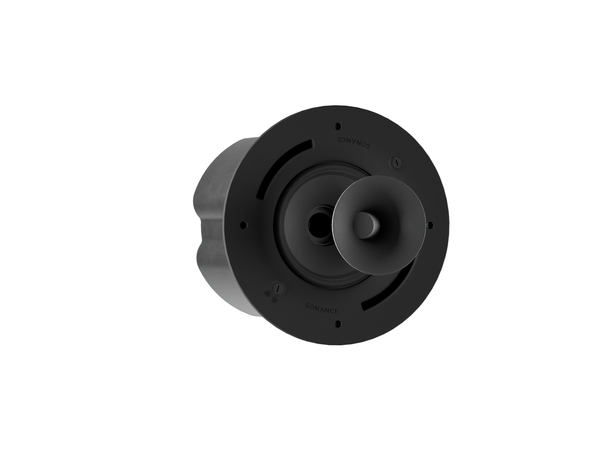

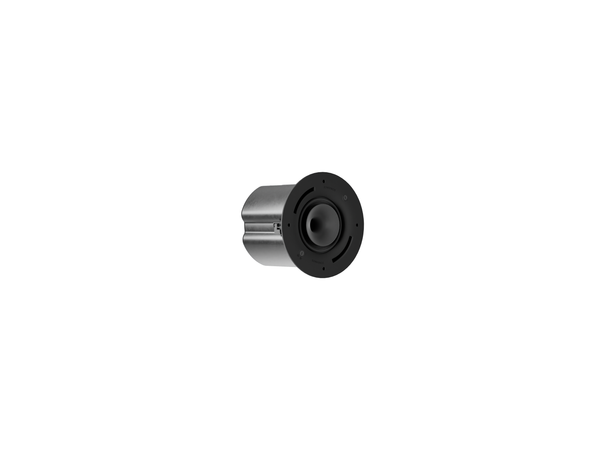

- Horn and collar assembly ships in-box; field-adjustable
- 1.4" compression driver engineered for high-SPL commercial environments
- Extended low-frequency response
- Integrated 70V/100V transformer, 120W max tap
- Part of a complete High Output form factor family
SKU | Color
40229
HF Driver
1.4" (36mm) aluminum dome compression driver, 36mm Voice Coil Size, 1" (25mm) Exit Size, Neodymium Magnet, 1500Hz Crossover Frequency
LF Driver
8" (203mm) aluminum cone, Santoprene surround, 60.55mm Voice Coil Size, Ferrite Magnet
Frequency Response (+/- 10db)
39.8Hz - 25kHz
Frequency Response (+/- 3db)
53.3Hz - 25kHz
Power Handling (RMS)
300 watts
Sensitivity
93dB SPL
Enclosure
PC/ABS (UL94V-0), Steel, Powder coated
Nominal Impedance (Ohms)
8 Ohms
Transformer Taps
70 V / 100 V: 120W, 60W and 30W 70 V: 15W
Coverage Pattern 1kHz to 10kHz
120 or 80 Degree Axis Symmetric
Dimensions (Diameter x D)
13.27" x 10.8" (337.06mm x 274.32mm)
Cut-Out Dimensions (Diameter)
11.625" (295.28mm)
Weight
26.04 lbs. (11.81kg)

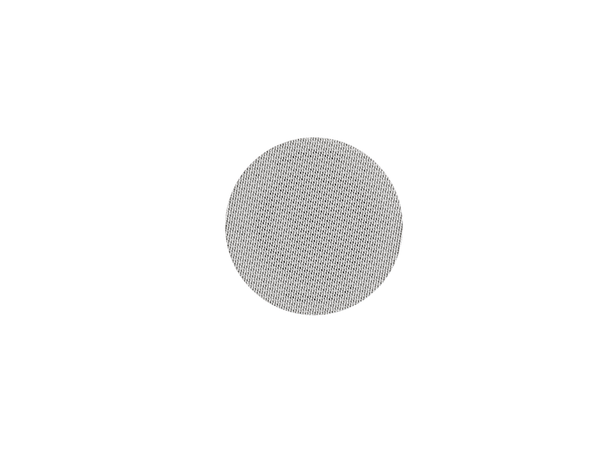

Grille
Steel
Input Connector
Four pin, Euroblock with loop output connections
Certifications
UL 1480A, UL 2043, NFPA 90A, NFPA 70
Suspension Points
Two, on top surface
