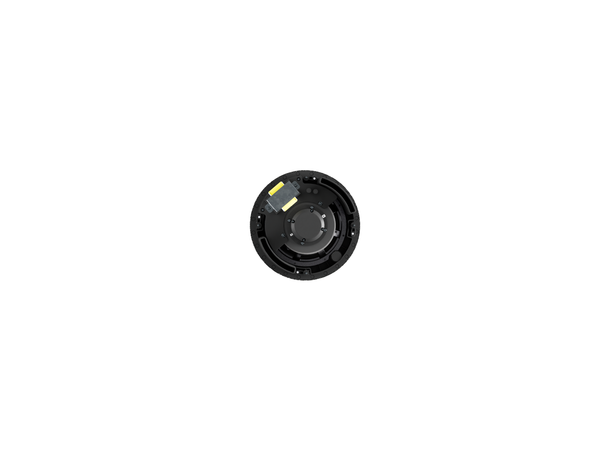

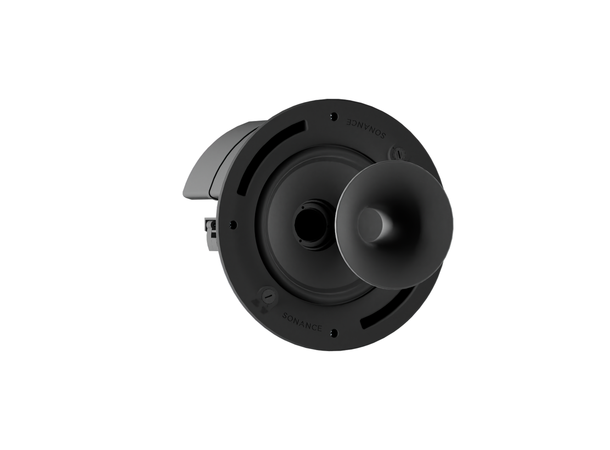

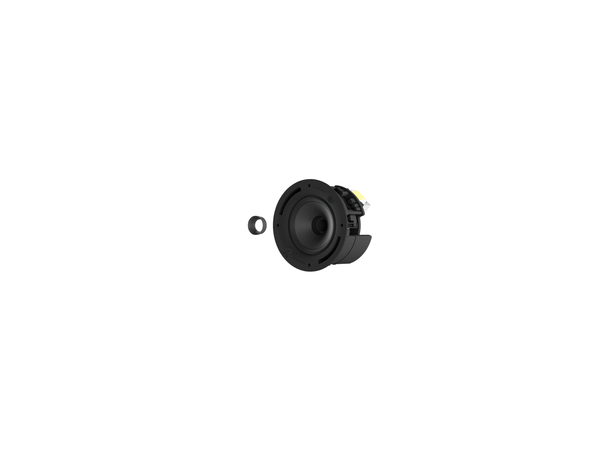

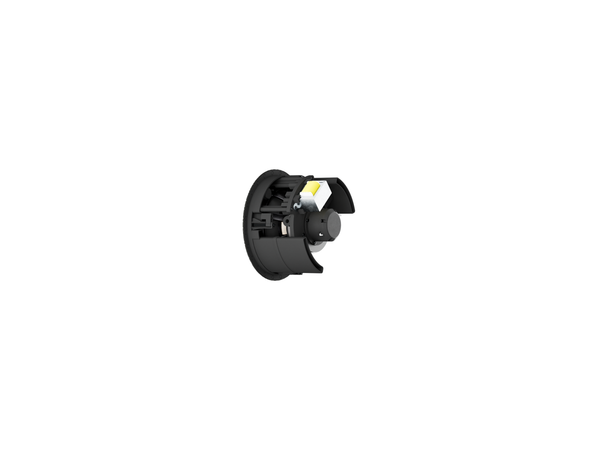

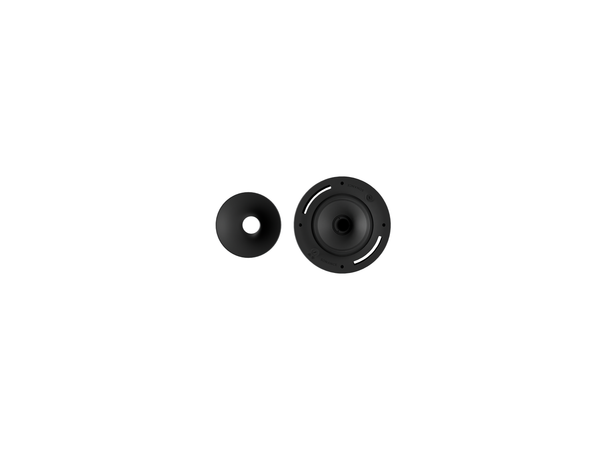

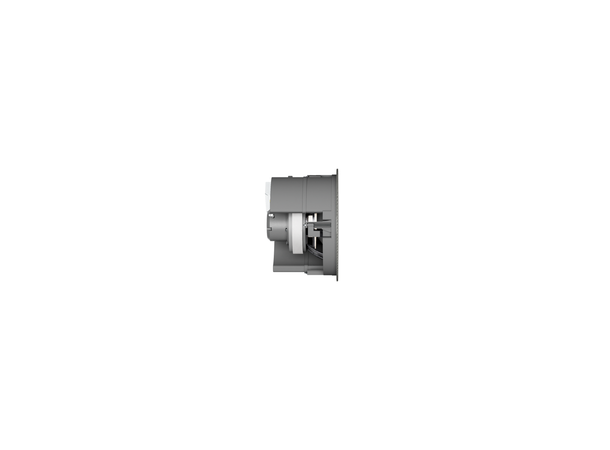

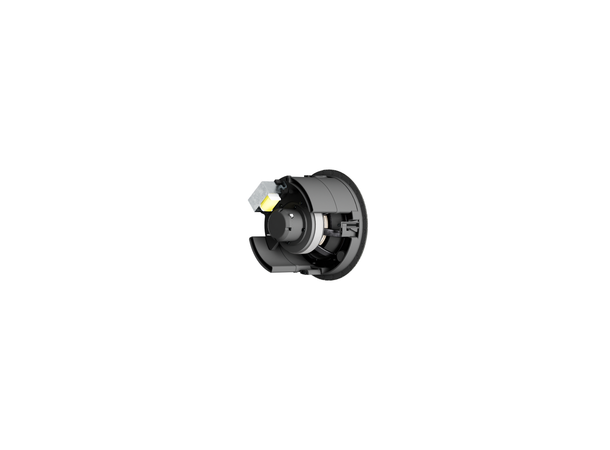

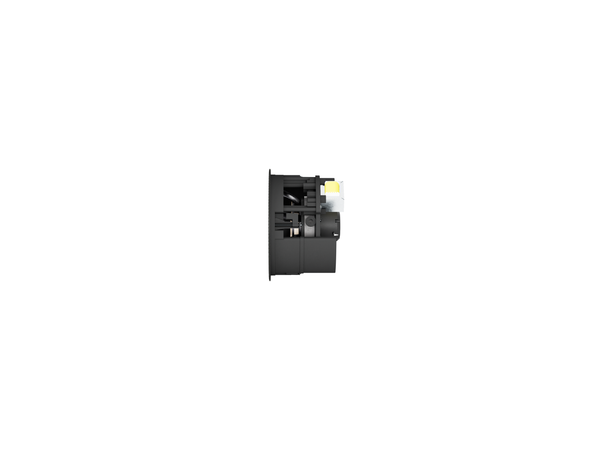

The PS-C85RTBF is the baffle-only configuration of the Professional Series high-output in-ceiling loudspeaker, designed for use with the PS-C85BB back box. Delivers 91dB sensitivity and extended low-frequency response, with selectable horn or collar dispersion and full 70V/100V distributed audio support.
SKU | Color
40231
HF Driver
1.4" (36mm) aluminum dome compression driver, 36mm Voice Coil Size, 1" (25mm) Exit Size, Neodymium Magnet, 1500Hz Crossover Frequency
LF Driver
8" (203mm) aluminum cone, Santoprene surround, 60.55mm Voice Coil Size, Ferrite Magnet
Frequency Response (+/- 10db)
36.6Hz - 25kHz
Frequency Response (+/- 3db)
41.4Hz - 20kHz
Power Handling (RMS)
150 watts
Sensitivity
91dB
Enclosure
PC/ABS (UL94V-0), Steel, Powder coated (sold seperately)
Nominal Impedance (Ohms)
8 Ohms
Transformer Taps
70 V / 100 V: 120W, 60W and 30W 70 V: 15W
Coverage Pattern 1kHz to 10kHz
120 or 80 Degree Axis Symmetric
Dimensions (Diameter x D)
11.07" x 7.22" (281.18mm x 183.39mm)
Cut-Out Dimensions (Diameter)
10.125" (257.18mm)
Weight
18.7 lbs. (8.48kg)
Grille
Steel
Input Connector
Gold Plated Push Terminals
Certifications
UL 1480A; UL 2043; NFPA 90A; NFPA 70
Suspension Points
One hang plate top surface, plus four suspension straps (side)
