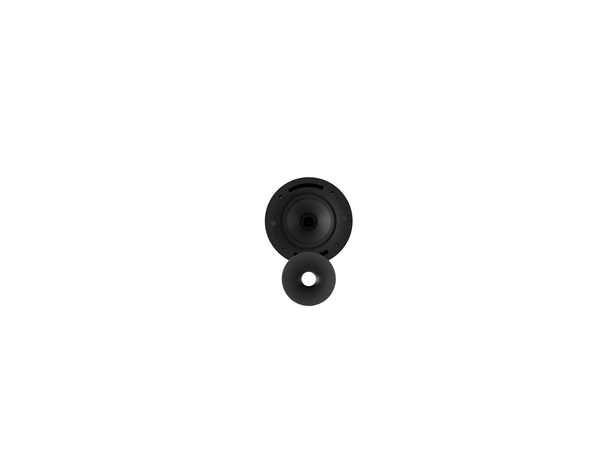

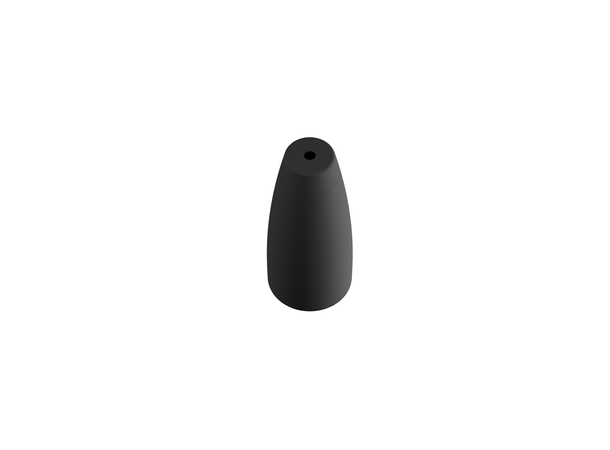

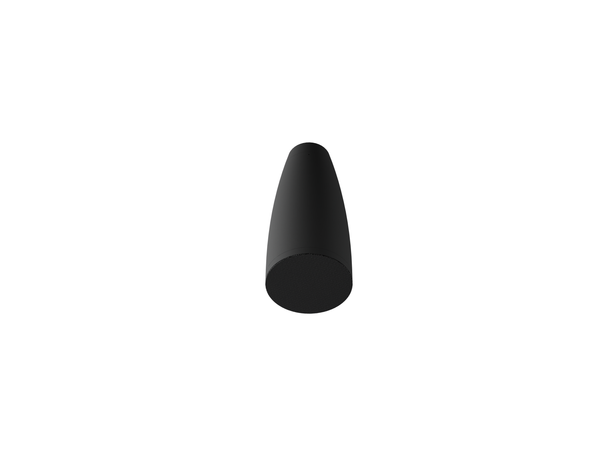

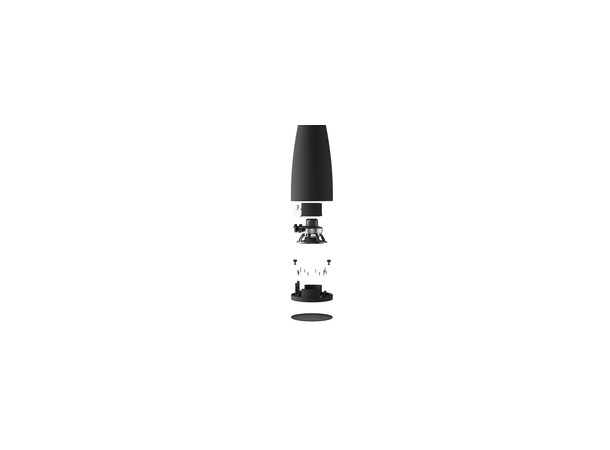

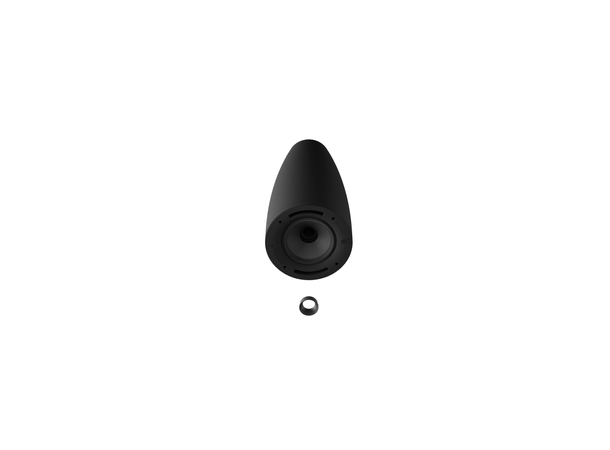

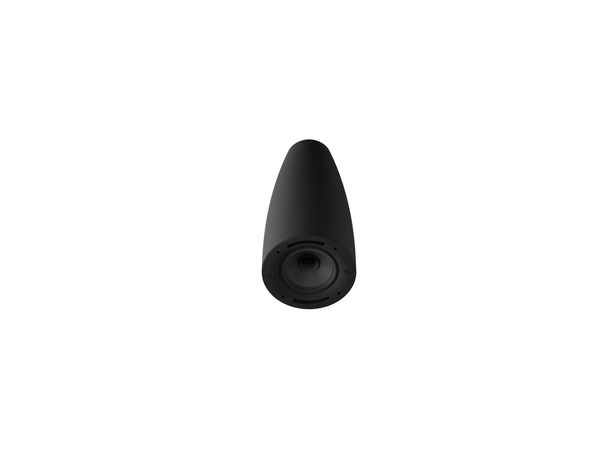

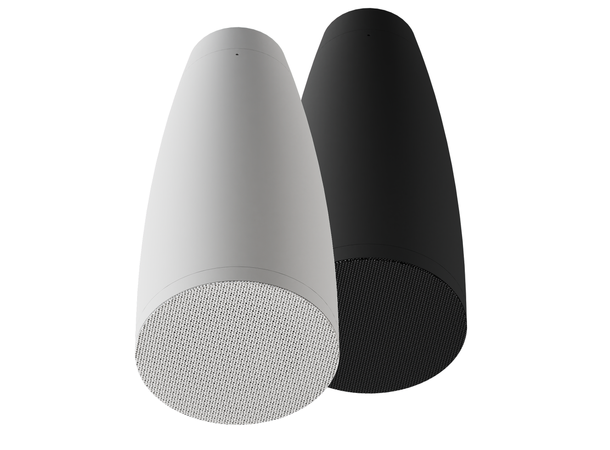

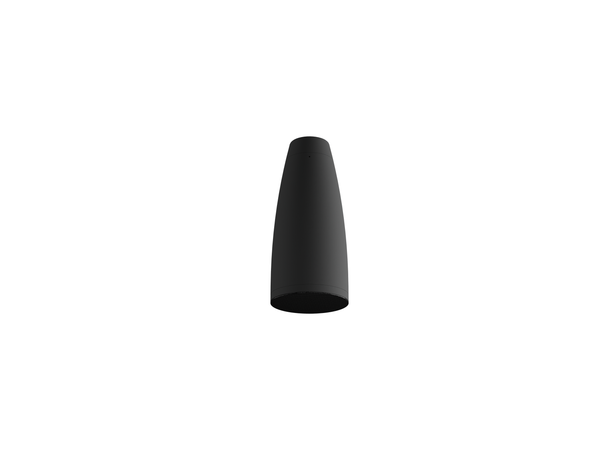

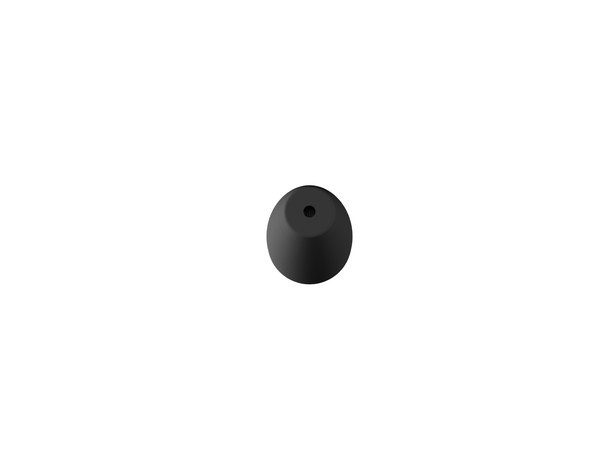

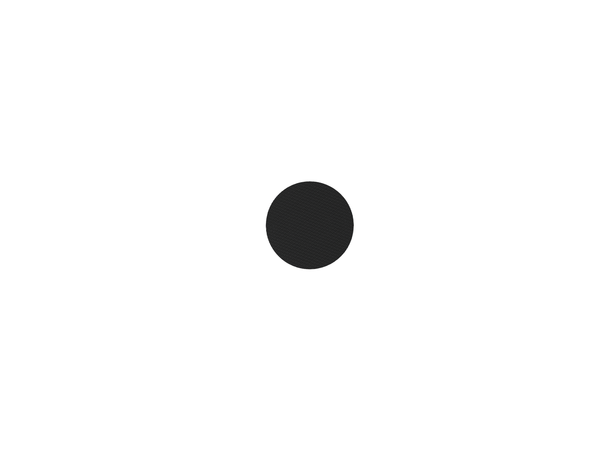

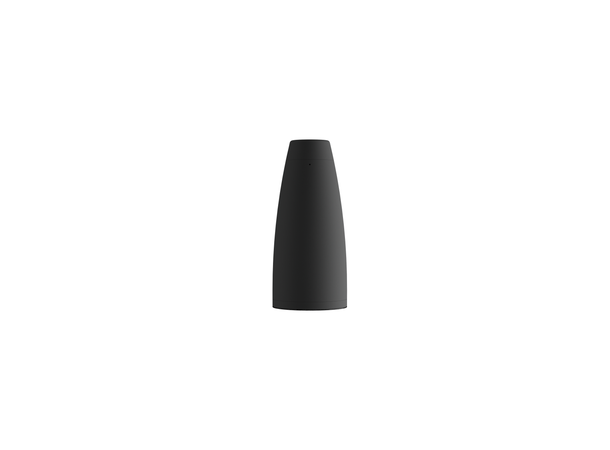

The PS-P85T is a high-output pendant loudspeaker for professional commercial installations. Sharing the same 8" aluminum cone driver and neodymium compression driver platform as the PS-C85RT, it delivers 88dB sensitivity and selectable 120°/80° dispersion with full 70V/100V transformer compatibility.
SKU | Color
40234 (Black), 40233 (White)
HF Driver
1.4" (36mm) aluminum dome compression driver, 36mm Voice Coil Size, 1" (25mm) Exit Size, Neodymium Magnet, 1500Hz Crossover Frequency
LF Driver
8" (203mm) aluminum cone, Santoprene surround, 60.55mm Voice Coil Size, Ferrite Magnet
Frequency Response (+/- 10db)
36.6Hz - 25kHz
Frequency Response (+/- 3db)
41.4Hz - 20kHz
Power Handling (RMS)
150 watts
Sensitivity
88 dB SPL
Enclosure
Polypropylene plastic (UL94V-0)
Nominal Impedance (Ohms)
8 Ohms
Coverage Pattern 1kHz to 10kHz
120 or 80 Degree Axis Symmetric
Dimensions (Diameter x D)
11.17" x 24.69" (283.72mm x 627.13mm)
Weight
23.55 lbs. (10.68kg)

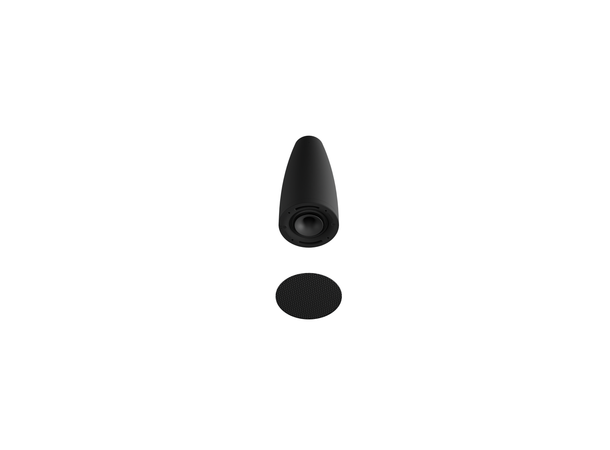

Grille
Steel
Certifications
UL 1480A;CSA-C22.2 No.205;NFPA70;NFPA 90A

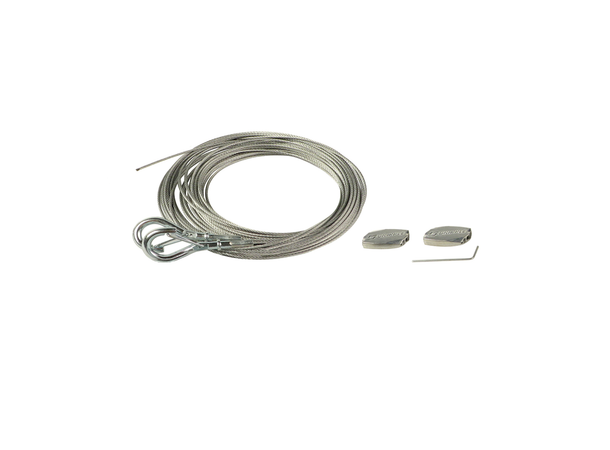

Suspension Points
Back
