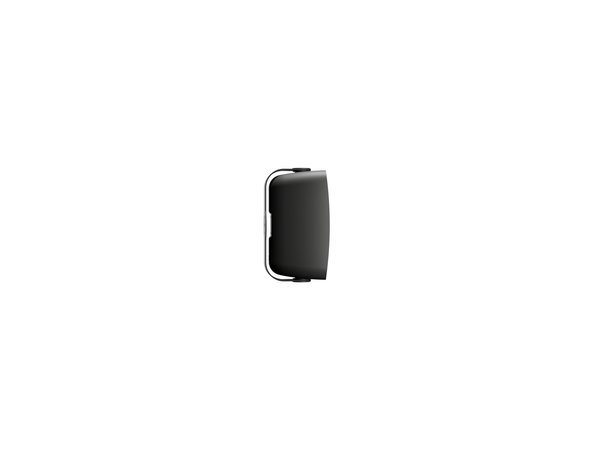

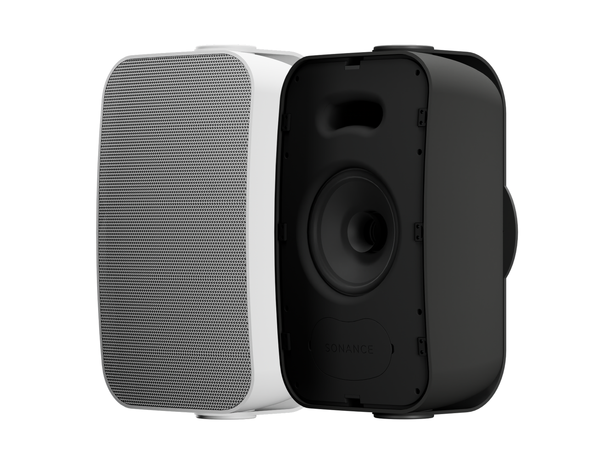

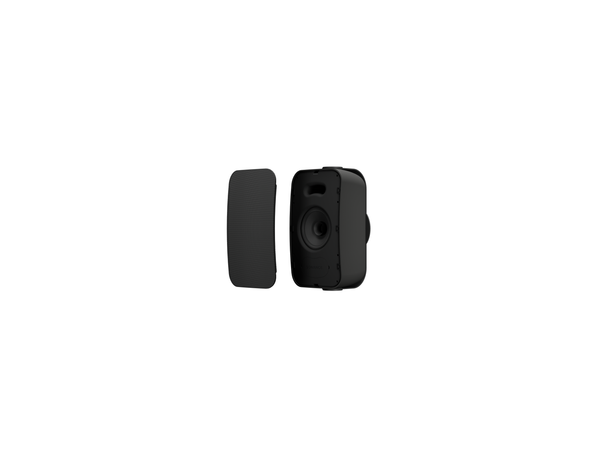

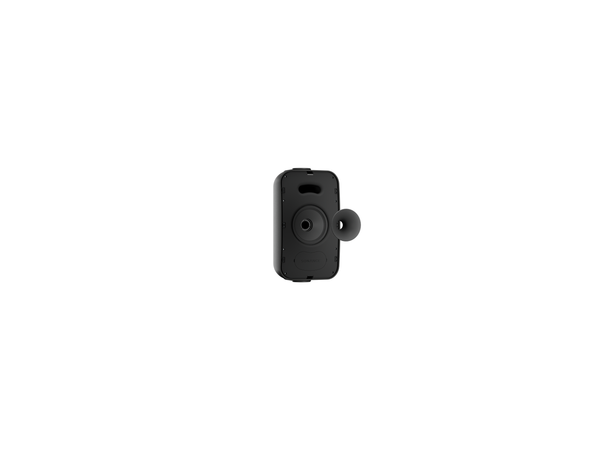

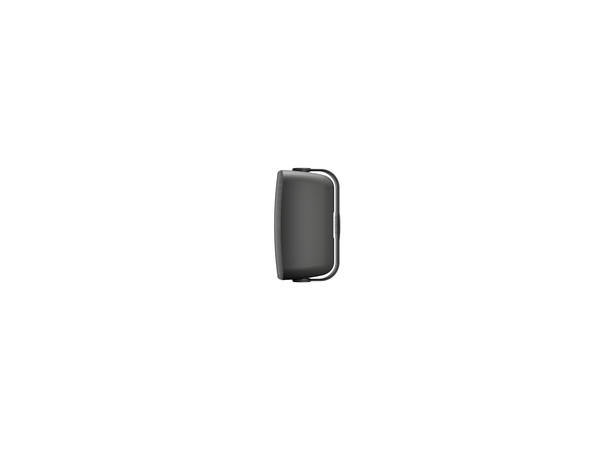

The PS-S85T is a high-output surface-mount loudspeaker built for commercial environments. Its UL94V-0 polypropylene enclosure and IPX4 ingress protection support both indoor and outdoor deployment, while the 8" aluminum woofer and neodymium compression driver deliver 93dB sensitivity and selectable dispersion patterns
SKU | Color
40236 (Black), 40235 (White)
HF Driver
1.4" (36mm) aluminum dome compression driver, 36mm Voice Coil Size, 1" (25mm) Exit Size, Neodymium Magnet, 1500Hz Crossover Frequency
LF Driver
8" (203mm) aluminum cone, Santoprene surround, 60.55mm Voice Coil Size, Ferrite Magnet
Frequency Response (+/- 10db)
36.6Hz - 25kHz
Frequency Response (+/- 3db)
41.4Hz - 20kHz
Power Handling (RMS)
150 watts
Sensitivity
93dB SPL
Enclosure
Polypropylene plastic (UL94V-0)
Nominal Impedance (Ohms)
8 Ohms
Transformer Taps
70 V / 100 V: 120W, 60W and 30W 70 V: 15W
Coverage Pattern 1kHz to 10kHz
120 or 80 Degree Axis Symmetric
Dimensions (WxHxD)
11.57" x 19.47" x 10.25" (293.88mm x 494.54mm x 260.35mm)
Weight
29.3 lbs. (13.29kg)

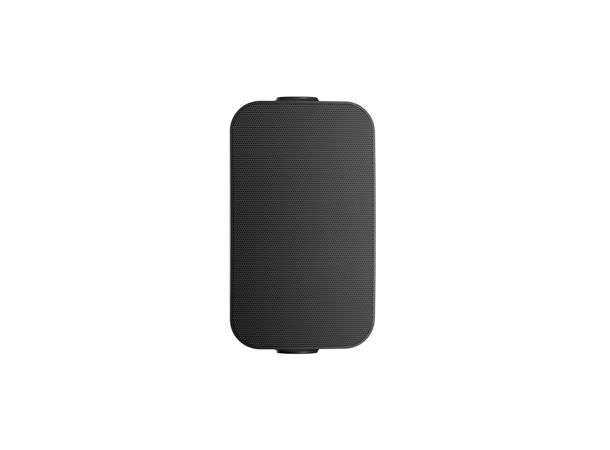

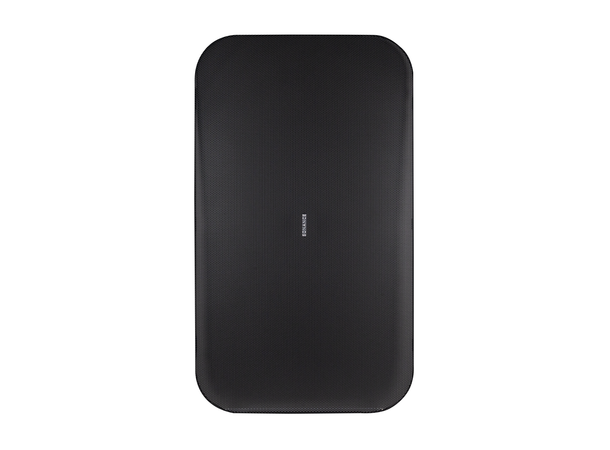

Grille
Steel
Input Connector
Four pin, Euroblock with loop output connections
Certifications
UL 1480A;CSA-C22.2 No.205;NFPA70;NFPA 90A

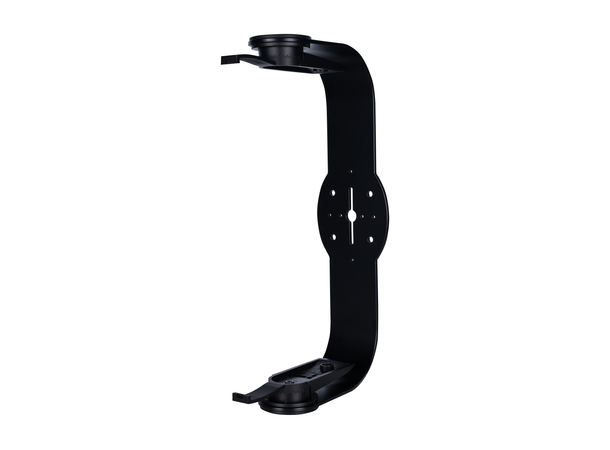

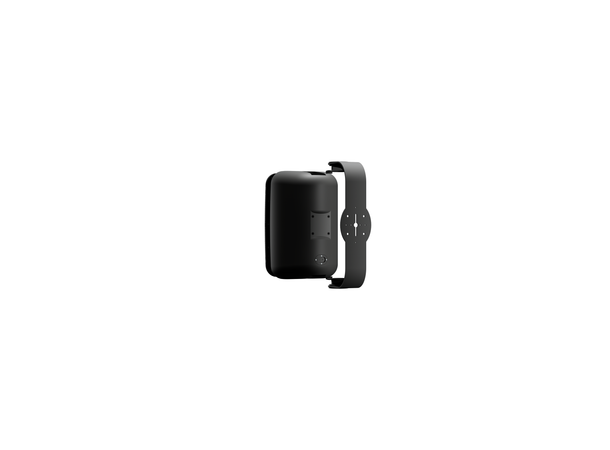

Suspension Points
Top, Bottom and Back
