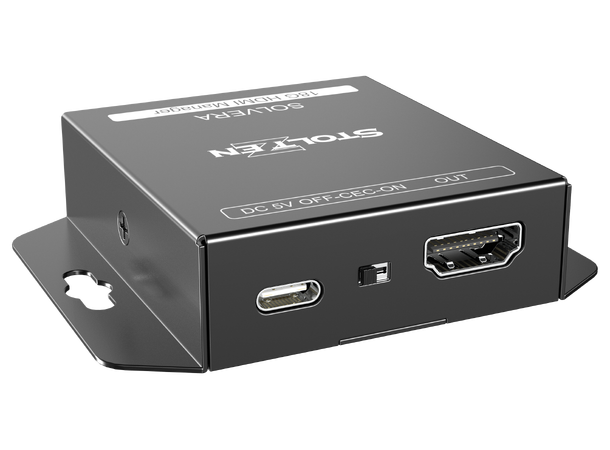

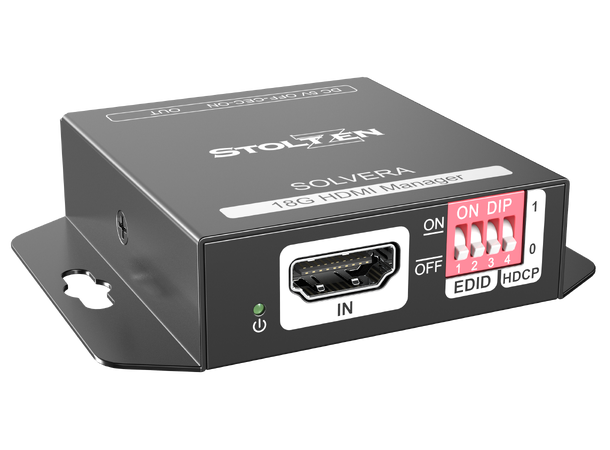

Stoltzen Solvera - EDID, HPD & HDCP Fix
A problemsolver for HDMI Installations
From the
latin word Solvere (to solve) we bring you Stoltzen SOLVERA.
Made to
ease installation tangles, this little wonder is packed with a series of smart
features.
- EDID Manager
- HDCP Manager
- 5V Manager
- CEC Blocker
Supports
up to 4K@60 4:4:4 and HDCP2.2.
Supports
EDID & HDCP management.
Powered
by HDMI or USB-C
Turn off
5V when source without TMDS
CEC
block switch.
Powered
by HDMI or USB-C
We
recommend using a power to the Solvera to reduce connection time. Find USB A-C
or C-C cable under accessories.
Specifications
| Video Input |
| Input |
1x
HDMI 2.0 |
| Input Connector |
1x
Female type-A HDMI |
| HDMI Input Resolution |
Up
to 4K@60 4:4:4 |
| Video
Output |
| Output |
1x
HDMI 2.0 |
| Output Connector |
1x
Female type-A HDMI |
| HDMI Output
Resolution |
Up to 4K@60 4:4:4 |
| General |
| Bandwidth |
18Gbps |
| Power Supply |
5V 1A |
| Power
Consumption |
2.4W(MAX) |
| Dimension
(W*H*D) |
54x18x60mm |
| Net Weight |
85g |
EDID Settings
| Switch |
Resolution |
| 0 |
Passthrough |
| 1 |
1080p |
| 10 |
1080p |
| 11 |
3840x2160@30Hz
HDR |
| 100 |
3840x2160@30Hz
HDR |
| 101 |
3840x2160@60Hz
HDR |
| 110 |
3840x2160@60Hz
HDR |
| 111 |
User
defined EDID |
