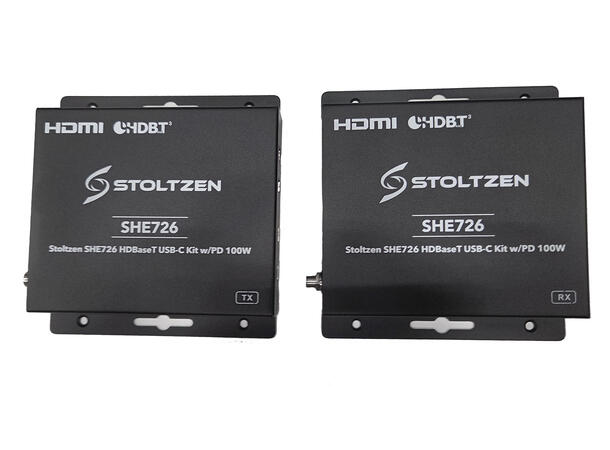

Stoltzen SHE726 HDBaseT™ USB-C Kit
This 18Gbps HDBaseT 3.0 Extender extends USB-C video and USB 2.0 signals over a single CAT6A/7 cable.
PD powersupply is sold separately
It supports transmission distances of:
The transmitter (TX) features:
The USB-C input supports DisplayPort Alt Mode (v1.2a) and USB 2.0 data.
The receiver (RX) features:
-
1 × HDMI output
-
4 × USB device ports
Both TX and RX support RS-232 signal pass-through and bi-directional 24V PoC (Power over Cable).
This extender provides a convenient and reliable solution for video extension via a single CAT cable and is ideal for commercial A/V applications.
2. Features
-
HDBaseT 3.0 extender with USB-C input
-
18Gbps video bandwidth
-
Supports video resolution up to 4K@60Hz (4:4:4 8-bit), as specified in HDMI 2.0b
-
Extends uncompressed 4K60Hz (4:4:4 8-bit) up to 130ft / 40m via CAT6A/7
-
Extends uncompressed 4K30Hz (4:4:4 8-bit) up to 230ft / 70m via CAT6A/7
-
HDR, HDR10+, Dolby Vision LLM and HLG pass-through
-
HDCP 2.3 compliant for secure source-to-display connection

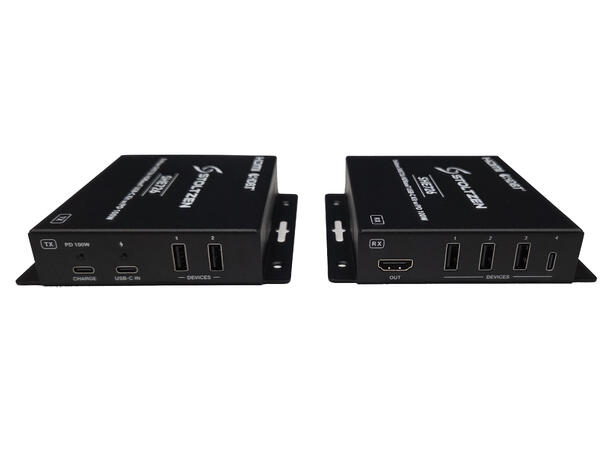

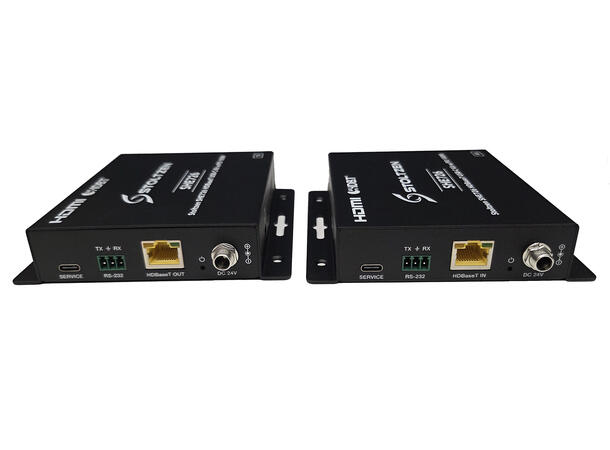

Transmitter (TX)
-
1 × USB-C input
-
1 × dedicated USB-C charging port
-
2 × local USB device ports
-
USB-C input supports DP Alt Mode (v1.2a) for A/V, USB 2.0 data, and power charging up to 100W
Receiver (RX)
-
1 × HDMI output
-
4 × USB 2.0 device ports
USB and Power
-
USB 2.0 high-speed transmission over HDBaseT 3.0
-
Each USB-A port provides up to 5V / 1A power
-
Bi-directional 24V PoC (Power over Cable). If either TX or RX is powered, the other unit does not require an external power supply
Control and Audio
-
RS-232 signal pass-through
-
Audio passthrough support for:
-
LPCM 2.0 / 5.1 / 7.1CH
-
Dolby TrueHD
-
Dolby Atmos
-
DTS-HD Master Audio
-
DTS:X
-
Compact design for easy and flexible installation
3. Package Contents
-
1 × 18Gbps USB-C over HDBaseT 3.0 Extender (Transmitter)
-
1 × 18Gbps USB-C over HDBaseT 3.0 Extender (Receiver)
-
2 × 3-pin 3.5mm Phoenix Connector (male)
-
1 × 24V / 2.7A Desktop Power Supply
-
1 × User Manual
