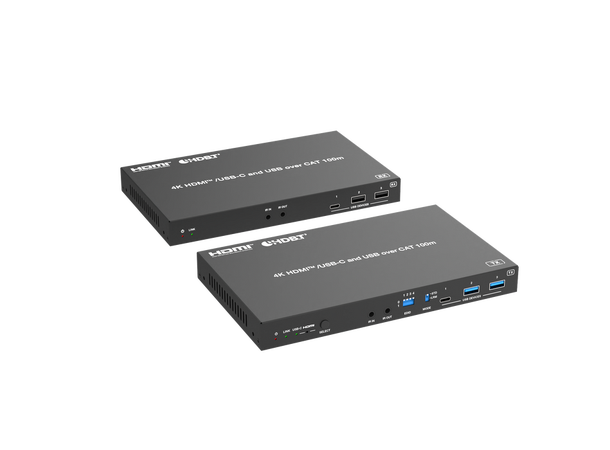

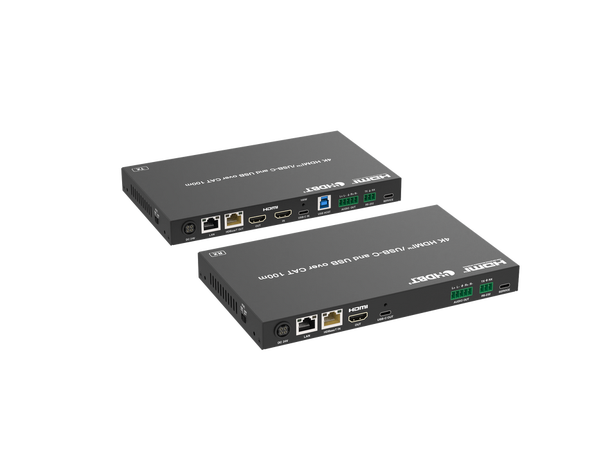

Stoltzen SHE865 HDBaseT Kit 100W PD USB

This 4K HDBaseT 3.0 Extender can extend uncompressed HDMI and USB-C signals, bi-directional IR, RS-232, and USB signals up to 328ft / 100m via a single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4.

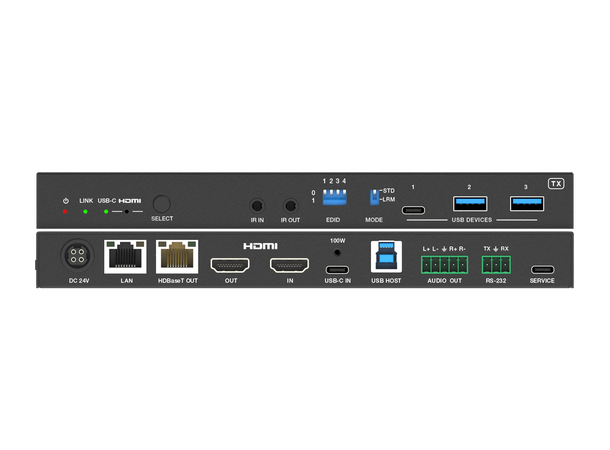

The transmitter features:

• 1 × HDMI input

• 1 × USB-C input (A/V + USB 3.2 + 1G Ethernet + 100W charging)

• 1 × USB 3.2 Host

• 3 × USB 3.2 Device ports

It can switch between HDBT Standard Mode (factory default) and HDBT Long Reach Mode. It supports EDID management.

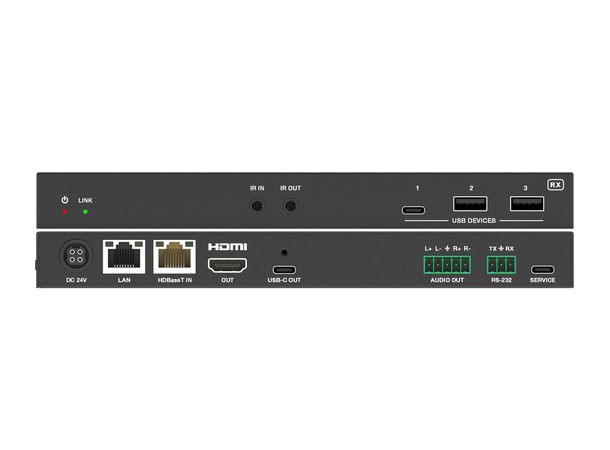

The receiver features:

• 1 × HDMI output

• 1 × USB-C output (DP output + USB 2.0 device port)

• 3 × USB 2.0 Device ports

Both transmitter and receiver support analog audio de-embedding, bi-directional IR, RS-232, and 1G LAN pass-through. The product also supports bi-directional 24V PoC.

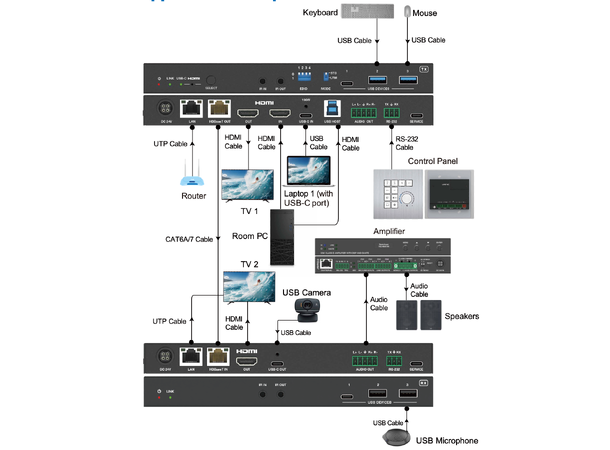

The extender provides a convenient solution for long-distance video extension via a single CAT cable, making it ideal for home and commercial applications.

2. Features

• Compliant with HDCP 2.2 and DisplayPort 1.4a

• 18Gbps video bandwidth

• HDBaseT 3.0 VS3000 chipset based design

• Supports video resolution up to 4K2K@60Hz (YUV 4:4:4) as specified in HDMI 2.0b

• 4K60 / 4K30 / 1080P transmission up to 328ft / 100m via a single CAT6A/7 cable (HDBT Standard Mode)

• 1080P 8-bit transmission up to 492ft / 150m via a single CAT6A/7 cable (HDBT Long Reach Mode)

Transmitter (TX)

• 1 × HDMI input

• 1 × USB-C input

• 1 × HDMI / HDBT output

• 1 × USB 3.2 host

• 3 × USB 3.2 device ports

Receiver (RX)

• 1 × HDBT input

• 1 × HDMI output

• 1 × USB-C output

• 3 × USB 2.0 device ports

Switching and USB Features

• USB-C and HDMI inputs support auto or manual switching

• Auto switching supports HDMI 5V or signal detect selection

• TX USB-C host supports DP-ALT mode for A/V, USB 3.2 data, 1G Ethernet, and up to 100W charging

• RX USB-C output supports A/V output and USB 2.0 data transfer

• USB-A device port VBUS depends on host connection status

Video and Audio Support

• HDR, HDR10, HDR10+, Dolby Vision LLM, and HLG pass-through

• 4K to 1080p downscaling on HDMI output, without frame rate conversion

• Analog audio de-embedding supported on both TX and RX

Control and Connectivity

• RS-232 pass-through and API control

• RS-232 and CEC support for external device power on/off

• 1G Ethernet pass-through

• Bi-directional IR pass-through

• Advanced EDID management

• Bi-directional 24V PoC support with PoC switch (USB-C charging only from TX power supply)

3. Package Contents

• 1 × 4K HDMI / USB-C over HDBaseT 3.0 Extender (Transmitter)

• 1 × 4K HDMI / USB-C over HDBaseT 3.0 Extender (Receiver)

• 2 × 3-pin 3.5mm Phoenix Connector (male)

• 2 × 5-pin 3.5mm Phoenix Connector (male)

• 4 × Mounting ears

• 8 × Machine screws (KM3 × 6)

• 1 × IR blaster cable (1.5m)

• 1 × IR receiver cable (1.5m)

• 1 × 24V / 7.5A desktop power supply

• 1 × User manual
