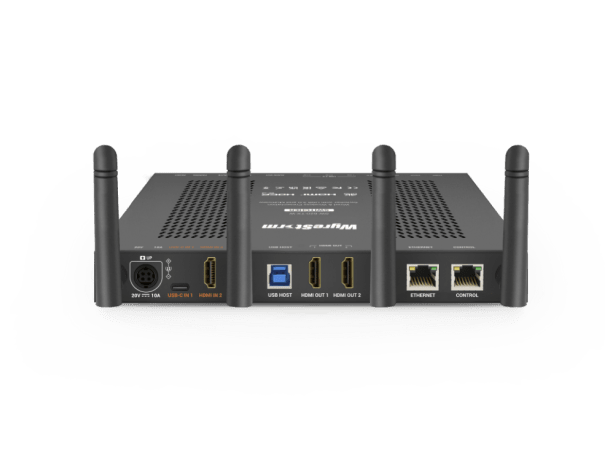

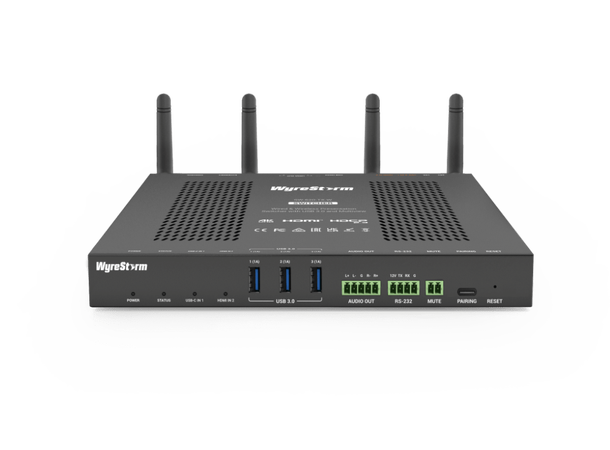

4K Presentation Switcher with 2-Inputs, advanced USB-C integration, Multi-Stream Transport, Multiview & Wireless Casting

SKU: SW-620-TX-W


The SW-620-TX-W is an advanced presentation switcher, tailored to meet the dynamic requirements of modern meeting spaces and conference rooms. This model offers quite a few important upgrades. Key improvements include one USB-C inputs with 100W PD and MST support for receiving dual video signals. The switcher now features an upgraded USB 3.0 switcher, further enhanced by support for wireless host through the APO-DG2. This addition allows for less cable clutter and cleaner installations.

COMPREHENSIVE INPUT OPTIONS

The SW-620-TX-W Conference Presentation Switcher features USB-C/HDMI input, as well as support for Miracast, Airplay and Wireless casting via APO-DG2/APO-DG2-PRO, allowing simple and clean installation.

ADVANCED USB-C INTEGRATION

Experience the full potential of USB-C with support for 4K video, USB 3.0 data transfer, and 100W charging. The SW-620-TX-W also supports dual video output via a single USB-C input cable, providing exceptional flexibility for multi-screen presentations.

FLEXIBLE AND AUTOMATIC SWITCHING

The switcher offers multiple switching methods, including automatic switching and independent USB and video switching. This ensures that your presentation flows smoothly, with minimal manual intervention required.

ROBUST CONNECTIVITY AND CONTROL

Equipped with three USB 3.0 device ports, one balanced audio de-embedding port, RS232, and MUTE port, the MX-0402-MST allows for seamless integration with various conference equipment. Additionally, the dual RJ-45 ports support Ethernet functionality in transparent mode, where it acts as a normal switch or isolated mode where control port is isolated

Technical Specifications

Additional Features

• Supports up to 4K@30 video resolution on a HDMI input, 4K@60 video resolution on a HDMI output 1 and, 4K@30 on HDMI output 2,ensuring superior visual quality for your presentations.
• Offers multiple control methods, including RS232, Telnet, and a user-friendly Web UI, allowing for convenient management and configuration of the switcher.
• Features automatic switching modes such as last-in-first-out, ensuring the most relevant input source is always displayed.
• Supports USB-C dual video mode, allowing one USB-C connection to transmit two independent video streams to two HDMI outputs.
• Provides the ability to switch USB and video signals independently, offering greater flexibility in managing connected devices.
• Includes a balanced audio de-embedding port for connecting to audio equipment, ensuring high-quality audio output.
• Dual RJ-45 ports support Ethernet functionality in transparent mode, where it acts as a normal switch or isolated mode where control port is isolated.
• Supports firmware updates via the Web UI and offers multiple methods to restore factory settings, ensuring the device stays up-to-date and easy to troubleshoot.
• USB-C ports support 100W Power Delivery, allowing for efficient charging of connected devices.

In the Box

• 1x SW-620-TX-W
• 1x Power adapter 20V/10A DC
• 4x AC cables, US, EU, UK, AU specifications respectively
• 1x 2-Pin Phoenix connector for MUTE port
• 1x 4-Pin Phoenix connector for RS232
• 1x 5-Pin Phoenix connector for analog audio output
• 4x Wi-Fi antennas
• 4x Mount brackets with screws
• 1x Quickstart Guide
