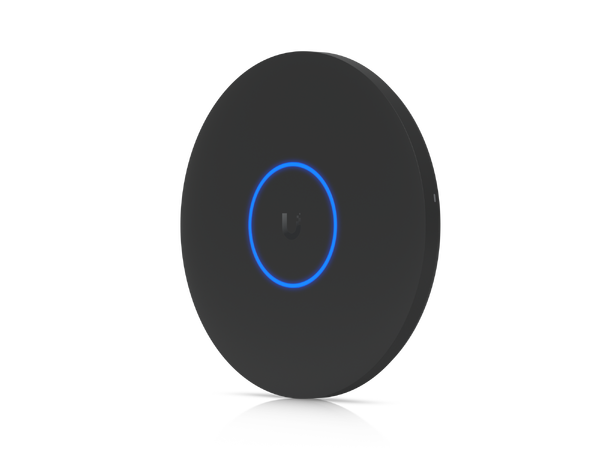

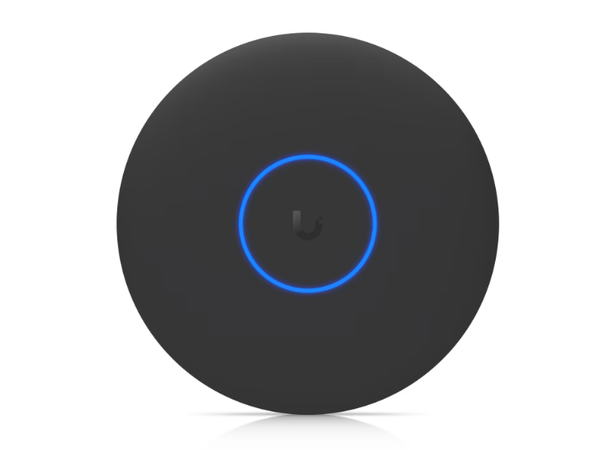

Ubiquiti UniFi Wifi 7 PRO XGS Black

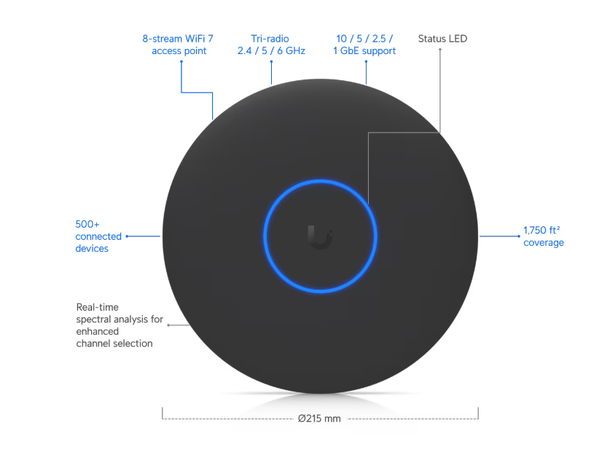

The UniFi U7 Pro XGS is a high-performance, ceiling-mounted WiFi 7 access point featuring 8 spatial streams, a 10 GbE uplink, and a dedicated real-time spectral scanning radio for advanced RF visibility and optimization.

Designed for high-density enterprise environments, it supports 500+ clients and covers up to 160 m² (1,750 ft²). With enhanced 5 GHz 4x4 MU-MIMO performance and ultra-wide 320 MHz channel support on 6 GHz (where permitted), the U7 Pro XGS delivers exceptional throughput and reliability.

Powered via PoE++, it is ideal for demanding deployments such as large offices, campuses, hospitality venues, and public environments requiring maximum wireless performance and advanced network control.

Technical Overview

Wireless Performance

• WiFi 7 (802.11be), 8 spatial streams

• Max data rates:

  • 6 GHz: up to 5.8 Gbps

  • 5 GHz: up to 8.6 Gbps

  • 2.4 GHz: up to 688 Mbps

• 4x4 MU-MIMO (5 GHz), 2x2 (6 GHz & 2.4 GHz)

• Real-time spectral analysis & Zero-Wait DFS

• Supports 500+ concurrent clients

Networking

• (1) 10 GbE RJ45 uplink

• Powered by PoE++ (42.5–57V DC)

• Max power consumption: 29W

Enterprise Features

• Fast roaming (802.11r/k/v)

• Band steering & advanced radio management

• Wireless meshing

• Captive portal with custom branding

• RADIUS, RadSec & dynamic VLAN assignment

• Client isolation & PPSK support

Physical & Environmental

• Dimensions: Ø215 x 32.5 mm

• Weight: 800 g

• Operating temperature: -30°C to 40°C

• UV-stabilized polycarbonate & aluminum enclosure

• NDAA compliant

• CE, FCC, IC certified

A premium WiFi 7 access point with 10 GbE connectivity and advanced RF intelligence, built for next-generation, high-density wireless deployments.
