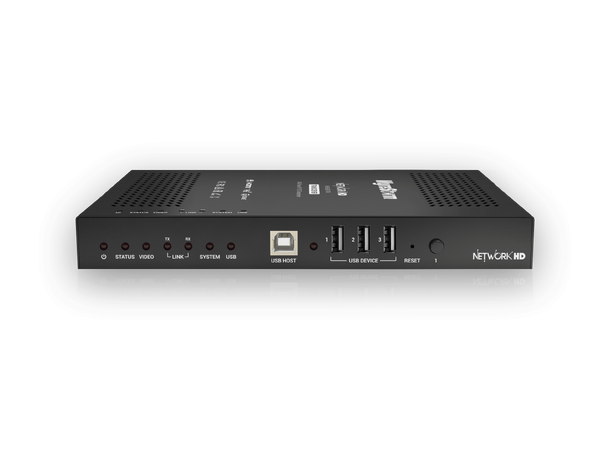

The NHD-600-TRX is a SDVoE transceiver capable of lossless & latency-free 4K60 over a 10GbE network. The TRX allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. 3 x USB HID ports allow extension for keyboard and mouse applications such as a corporate meeting room or an operating center. A cutting-edge architecture provides an efficient, small footprint and support for PoE+.
PREMIUM AV OVER IP PERFORMANCE
With all the bells & whistles of a flagship AV over IP solution, the NetworkHD 600 Series provides clarity and performance for those environments requiring detail and responsiveness. Whether monitoring mission critical AV feeds from a control room, immersed in the competitive E-Sports environment, or requiring crystal clear visuals in the medical field, this AV over IP distribution solution exceeds with no limitations.
Best in Market ’22 Award Winner
Our award-winning NetworkHD line keeps on winning! Our NHD-600-TRX manages to scoop up Best in Market at Integrated Systems Europe 2022. Brought to the market by six leading brands within the industry, the award celebrates outstanding products and solutions within the AV landscape.
ONE DEVICE, A MULTITUDE OF POSSIBILITIES

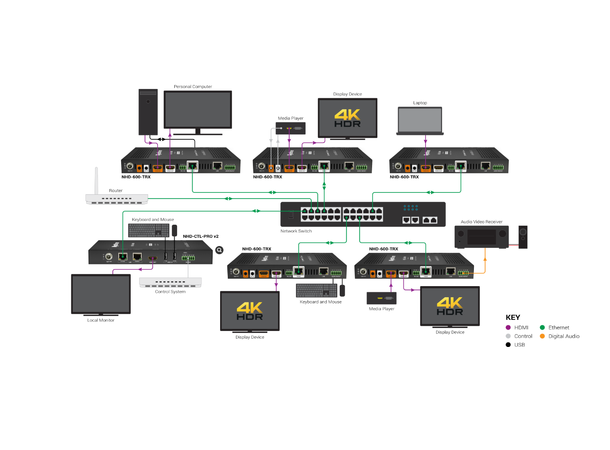

Unlike similar products in the market, the NetworkHD 600 Transceiver gives you the option to be a transmitter or receiver, without locking it into being one or the other. This means you can have remote sources connected to a “receiver” and loop it back into the system, allowing it to be viewed anywhere in a building.
HDMI 2.0
All 600 series components support encoding full HDMI 2.0 content. This includes 4K60 4:4:4 8bit and high dynamic range formats such as Dolby Vision, HDR10 and HLG. Most HDMI content is transmitted completely uncompressed and delivered over the network latency free using genlock synchronization.
VIDEO WALL & MULTIVIEW
The NHD-600-TRX integrates powerful video wall and multiview processing via one device. Create captivating videos up to 8×8 in size with the ability to adjust for bezels. Or create compelling picture in picture layouts that support up to 16 windows with full control over window placement and size.
AUDIO
& VIDEO

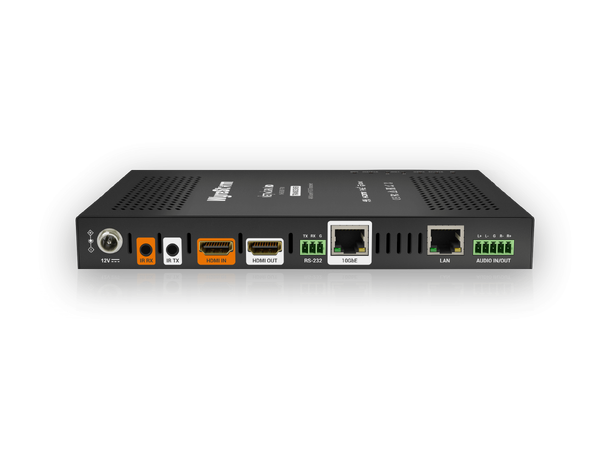

Inputs/Outputs
1x HDMI
2.0b Input
1x HDMI 2.0b Output
1x 5-pin Balanced Analog Audio
1x 10GbE 8-pin RJ45
Video
Encoding/Decoding
SDVoE Pixel
Pipeline
Encoding/Decoding
Data Rate
1080p@60Hz
8bit – 3.4Gbps
4K @30Hz 4:4:4 8bit – 6.4Gbps
4K @60Hz 4:4:4 8bit – 8.7Gbps (with light compression)
End to
End Latency
Genlock
Mode: Uncompressed = 30us, Compressed <120us
Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps
Video
Resolution (Max)
4096x2160p
@ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
1920x1080p @60Hz 12bit
Supported
Standards
RGB | DCI |
Rec. 709 | BT.2020
COMMUNICATION
& CONTROL
HDMI
HDCP 2.2 |
CEC
Ethernet
1 x 1GbE LAN
8-pin RJ45
RS-232
1x 3-pin
Phoenix Connector | 2 Way | Broadcast | Routed | API Programmable
IR
1 x IR TX
3.5mm TS Mono Jack | API Programmable
1 x IR RX 3.5mm TRS Stereo Jack | API Programmable
USB
3 x USB 1.1
Type A
1 x USB 1.1 Type B Host
POWER
Power
Supply
12V 2A DC
PSU | 802.3at PoE+ compliant
Max
Power Consumption
Max: 24w |
Average: 10w
- Capable of high-bitrate
multichannel audio passthrough, including Dolby Atmos™ and DTS:X
- 3x USB 1.1 HID ports for
extension of keyboard & mouse applications
- Powerful video scaling can
match a connected display to the video source, leaving the original source
content unaltered
- Video resolution, framerate and
color space conversion using SMPTE/ITU recommended methods
- Genlock scaler mode for zero
end-to-end latency
- Supports seamless AV source
switching via Fast Switch mode
- Balanced analog audio port can
be configured as an input or output for a discrete audio stream or HDMI
de-embedding
- Bidirectional IP to Infrared /
RS-232 functionality via the API or 3rd-party drivers
- Auxiliary 1GbE channel for
network connectivity of attached source devices
- Powerful matrix functionality
includes routing control of all audio, video, RS-232 and IR signals
- Compatible with NHD-000-RACK4
for easy rack mounting
- Secure A/V transmissions using
AES encryption methods
*Preview streams not supported
