6U/12 Slot Rack Mount for NetworkHD® 100/250/400/500/600 Series
SKU: NHD-000-RACK4

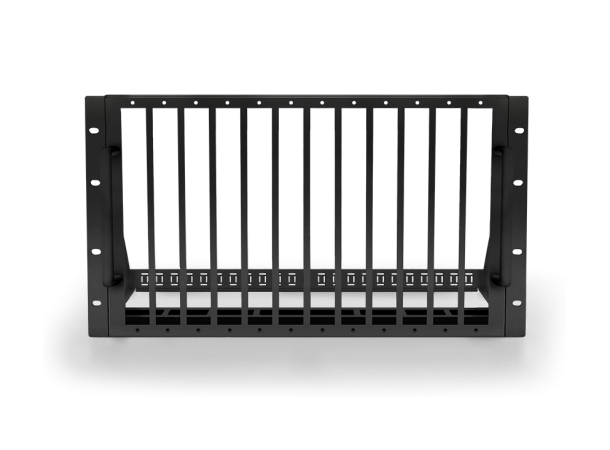

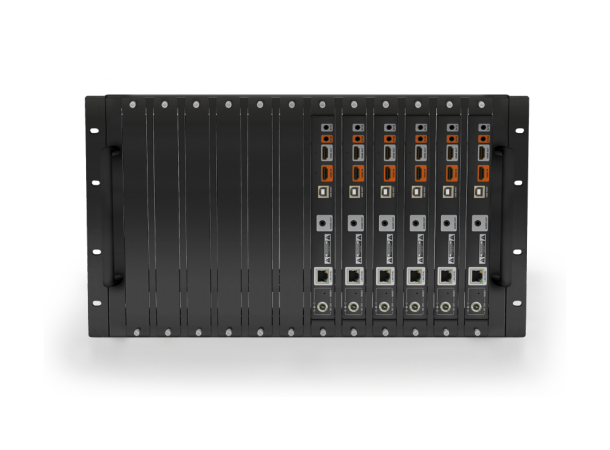

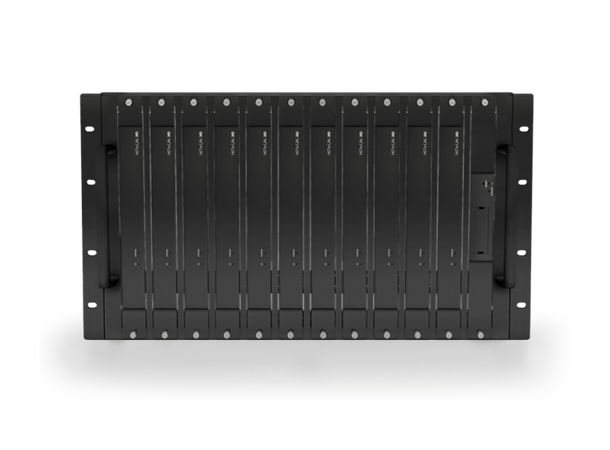

The NHD-000-RACK4 is a 6U rack mount that provides a clean installation for up to 12 NetworkHD 100, 400, 500, and 600 Series encoders or decoders. The NHD-000-CTL NetworkHD controller is also compatible, allowing for all required devices to be installed in a single location.
The slimline and thermally optimized design helps keep your centralized NetworkHD solution perfectly organized.
Key Features
- Ideal Heat Dissipation: Vertical slot installation supports any combination of up to 12 NetworkHD Series components or NHD-CTL-PROs, providing ideal component heat dissipation and airflow – a key factor in increasing reliability and product lifespan.
- All Steel Design: Strong steel enclosure construction keeps hardware secure and protected with units secured via brackets, rails, and front panel screws.
- We Ship Complete: All mounting hardware provided: rack, brackets, blanking plates, rails, lacing bar, handles, and screws.
- Streamline Your Install: Specifically designed for organizing NetworkHD components within the main rack location. Improves cable management, port identification, and unit access.
Technical Specifications
- Rack Units | Wall Box: 6U
- Height (With/Without Feet): 265.9mm / 10.47in
- Width (With/Without Brackets): 483mm / 19.02in | 440mm / 17.33in
- Depth (With/Without Handles): 188.3mm / 7.42in | 150mm / 5.91in
- Weight (Chassis without Plates): 2.3kg / 5.06lbs
Additional Notes
- Does not come with encoder/decoder/controller device mounting brackets (included with the device itself).
- Includes 7 blanking plates. Additional plates available separately (NHD-RACK4-BLK).
- Supports mounting of NetworkHD encoders or decoders with front/rear-facing connections for flexible cable management.
- Removable rear cable lacing bar included for optimal routing and thermal efficiency.
- Front-facing handles improve maneuverability and convenience.
- Compatible with passive or active cooling systems to ensure performance and MTBF.
- Systems can be pre-built into the rack kit for faster on-site installation.
In the Box
- 1x NHD-000-RACK4 Chassis
- 2x 19” Rack Mounting Brackets
- 7x Blank Plates
- 1x Assembly Screws Pack
