1U/2 Slot Rack Mount for NetworkHD™ NHD-140-TX
SKU: NHD-140-RACK-1U

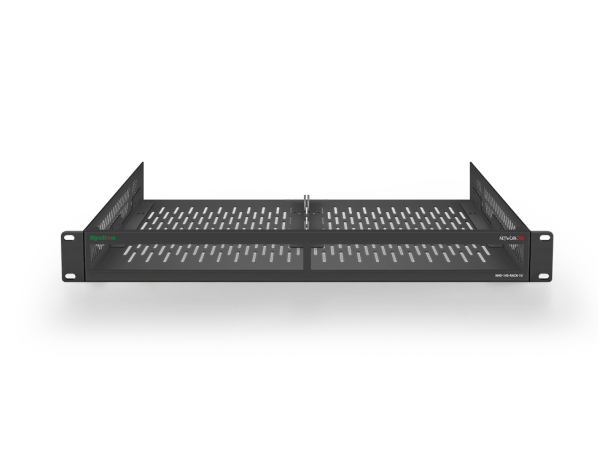

The NHD-140-RACK-1U is a 1U rack mount that provides a clean installation for up to 2 NetworkHD 100 Series NHD-140-TX quad encoders. The minimal rack unit height and compact mounting arrangement allows a very high NetworkHD 100 Series encoder density designed for space restricted deployments. The robust and thermally optimized design helps keep your centralized NetworkHD solution perfectly organized.
Key Features
- Ideal Heat Dissipation: Horizontal slot installation supports up to 2 NetworkHD 140-TX components providing optimal heat dissipation and airflow.
- We Ship Complete: Includes rack, brackets, blanking plates, rails, lacing bar, handles and screws.
- All Steel Design: Strong steel enclosure for secure and protected hardware, secured via brackets, rails and screws.
- Streamline Your Install: Improves cable management, port identification and access to units, specifically designed for rack organization.
Technical Specifications
- Rack Units: 1U
- Height: 43.5mm / 1.71in
- Width: 483mm / 19in
- Depth: 162mm / 6.38in
- Weight (Empty): 1.01kg / 2.23lbs
Additional Features

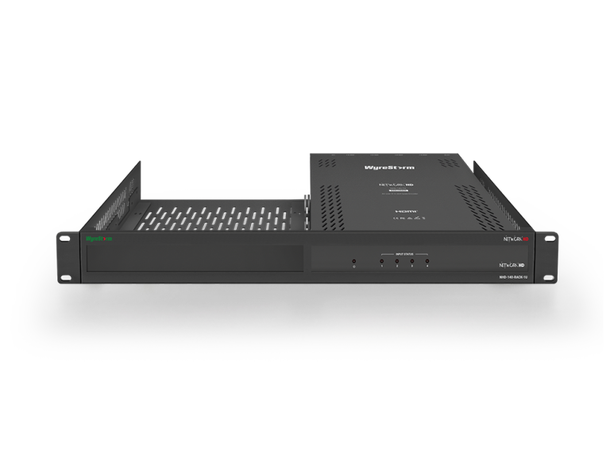

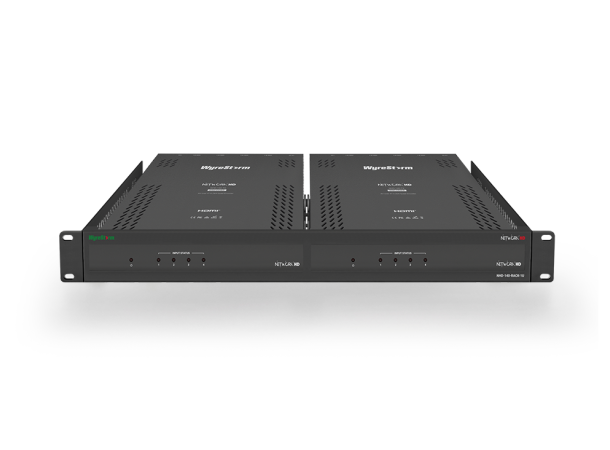

- Mounts one or two NHD-140-TX Quad Encoders side-by-side
- High encoder density for AV/IT racks
- Front or rear-facing connection mounting options
- Supports passive or active cooling designs
- Pre-build compatible for efficient on-site setup
- All-steel sturdy structure
- Includes 4x mounting brackets, 1x blanking plate and screws
In the Box
- 1x NHD-140-RACK-1U Chassis
- 4x Encoder Mounting Bracket
- 1x Blanking Plate
- 1x Assembly Screws Pack
