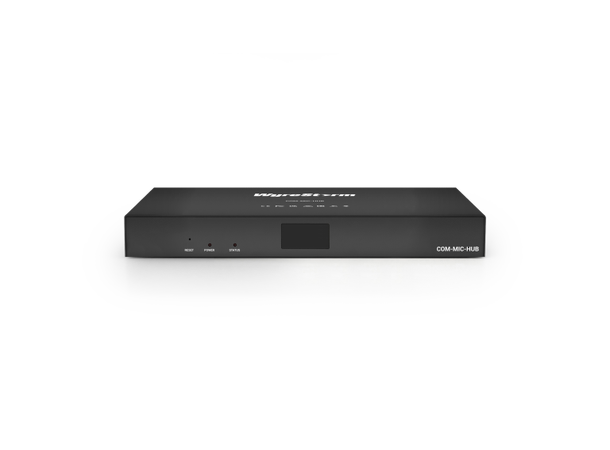

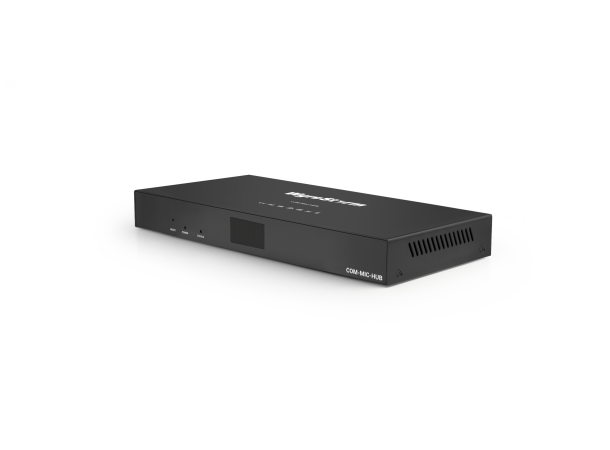

Microphone Hub

SKU: COM-MIC-HUB

Overview

The COM-MIC-HUB is a versatile microphone hub with advanced audio DSP and wireless microphone support. Ideal for education and conference setups, it enhances local and remote sound quality and provides intuitive centralized control via Web-UI or RS-232.

Key Features

• Advanced Audio DSP: AEC, AGC, and Background Noise Reduction for optimal audio clarity.
• Independent Audio Output: Line Out for external amplifiers and speakers.
• Wide Microphone Compatibility: Works with ceiling and wireless microphones.
• Flexible Control: Web-based interface and RS-232 support for professional integration.
• Wireless Mic Support: Dedicated input port for wireless microphone systems like Shure.

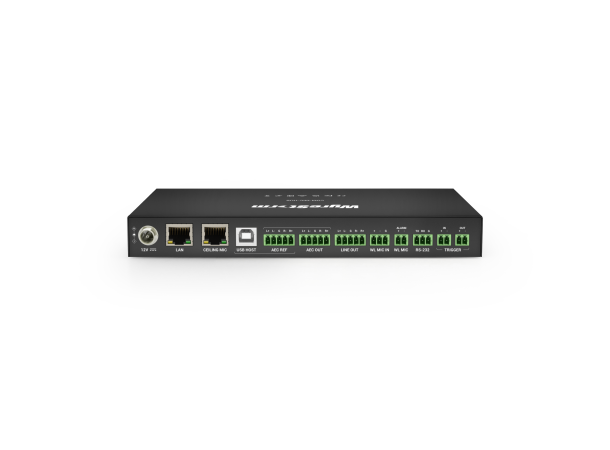

Technical Specifications

Audio

• Host: 1x USB-B Female
• Ceiling Mic: 1x RJ45
• WL Mic In: 1x 3-pin Phoenix Female
• AEC Ref: 1x 5-pin Phoenix Female
• Line Out / AEC Out: 2x 5-pin Phoenix Female

Communication & Control

• Ethernet: 1x RJ-45 (Web UI, Matrix Control)
• RS-232: 1x 3-pin Phoenix Female
• Trigger In/Out: 2x 2-pin Phoenix Female

Power

• Power Supply: 12V DC 2A (screw head)

Environmental

• Operating Temp: 0 to +45°C
• Storage Temp: -20 to +70°C

Dimensions

• Size: 25mm (H) x 215mm (W) x 120mm (D)

In the Box

• 1x COM-MIC-HUB
• 1x 12V DC 2A Power Adapter (US/EU/UK/AU plugs)
• 3x 5-pin Phoenix Male Connector
• 2x 3-pin Phoenix Male Connector
• 3x 2-pin Phoenix Male Connector
• 4x Mounting Brackets with screws
• 1x Quick Start Guide
