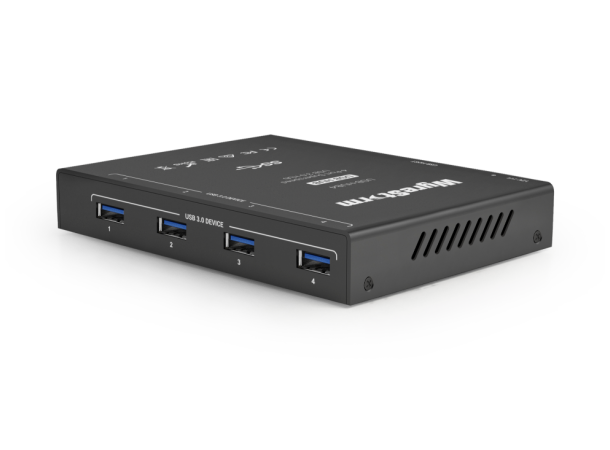

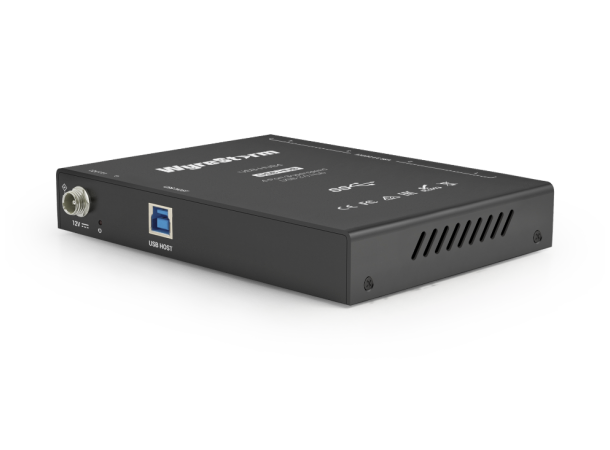

The USB-HUB4 is a simple add-on accessory for expanding USB connectivity of your devices.
Pair this hub with a number of WyreStorm products to help build your full solution.
Connect the hub to the CAB-UAOC-15 USB 3.0 extension cable to provide long distance transmission
of high-speed USB 3.0. The USB-HUB4 is also a great companion to the Apollo line of unified communication solutions.
Although simple, we’ve kept pro installations in mind by including a set of mounting brackets to easily
install the hub under a desk or behind a display.
Main Features
- USB Devices: USB 3.0 transfer speeds up to 5Gbps. Perfect for cameras, speakerphones, etc.
- Mounting: Includes mounting brackets for easy under-desk or behind-display installation.
- Backwards Compatible: Fully compatible with USB 2.0 devices.
- Solution Building: Designed to be paired with WyreStorm USB devices for expanded connectivity.
Technical Specifications
Connectivity
- 4 x USB 3.0 Type A
- 1 x USB 3.0 Type B Host
- Max Bandwidth: 5Gbps (combined across 4 ports)
Power
- 12V 2A DC Power Supply
- Max shared current: 4.5A
- Max per port: 5V 1.5A
Additional Features
- 4x USB 3.0 ports for peripheral devices
- High-speed data transfer rates up to 5Gbps
- Mount under table or behind display
- Backwards compatible with USB 2.0
- Plug and play – no drivers needed
- Compatible with EX-100-USB3 for long-distance USB expansion
- Pair with WyreStorm switchers like the SW-510-TX or
APO-210-UC
In the Box
- 1x USB-HUB4
- 1x 12V DC Power Supply (US/UK/EU/AU)
- 1x USB 3.0 Host Cable
- 2x Mounting Brackets with Screws
- 1x Quickstart Guide
