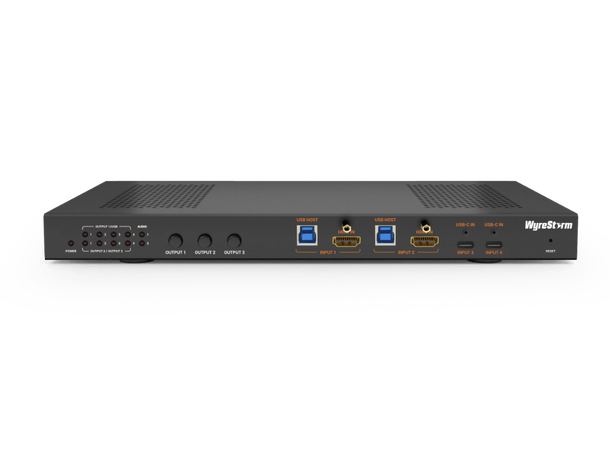

The MX-0403-H3-MST Conference Presentation Switcher builds on the success of the MX-0402-MST by adding an HDBaseT 3.0 output for signal extension of up to 100m. Designed to simplify and enhance your presentation experience, this 4×3 switcher integrates video, audio, USB, control, and Ethernet functionalities. With dual USB-C and dual HDMI inputs, automatic switching capabilities, and advanced USB 3.2 ports, the MX-0403-H3-MST ensures seamless connectivity and control for all your conference needs. Experience crystal-clear 4K video, high-speed data transfer, and efficient power delivery with this state-of-the-art presentation switcher.

COMPREHENSIVE INPUT OPTIONS

The MX-0403-H3-MST Conference Presentation Switcher features dual USB-C and dual HDMI inputs, allowing for versatile connectivity. Each input port supports cable lock connections, ensuring secure and stable connections for your presentation devices.

ADVANCED USB-C INTEGRATION

Experience the full potential of USB-C with support for 4K video, USB 3.2 data transfer, and 60W charging. The MX-0403-H3-MST also supports dual video output via a single USB-C cable, providing exceptional flexibility for multi-screen presentations.

FLEXIBLE AND AUTOMATIC SWITCHING

The switcher offers multiple switching methods, including automatic switching, priority switching, and independent USB and video switching. This ensures that your presentation flows smoothly, with minimal manual intervention required.

HDBASET OUTPUT

The Switcher also features an HDBT 3.0 output for extension to remote zones (Up to 100m), enabling IP to RS-232 command routing at the display zone for controlling displays and other devices.

Technical Specifications

Additional Features

• Supports firmware updates via the Web UI and offers multiple methods to restore factory settings, ensuring the device stays up-to-date and easy to troubleshoot.
• Supports up to 4K@60Hz 4:4:4 video resolution on all HDMI inputs and outputs, ensuring superior visual quality for your presentations.
• Supports a wide range of audio formats, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS, delivering an immersive audio experience.
• Offers multiple control methods, including RS232, Telnet, and a user-friendly Web UI, allowing for convenient management and configuration of the switcher.
• Features automatic switching modes such as last-in-first-out and priority settings, ensuring the most relevant input source is always displayed
• Supports USB-C dual video mode, allowing one USB-C connection to transmit two independent video streams to two HDMI outputs
• Provides the ability to switch USB and video signals independently, offering greater flexibility in managing connected devices.
• Includes a balanced audio de-embedding port for connecting to audio equipment, ensuring high-quality audio output.
• All ports support cable lock connections to ensure stable and secure connections for all devices during presentations.
• Dual RJ-45 ports support Ethernet switching and VLAN settings, providing reliable network connectivity and enhanced security.
