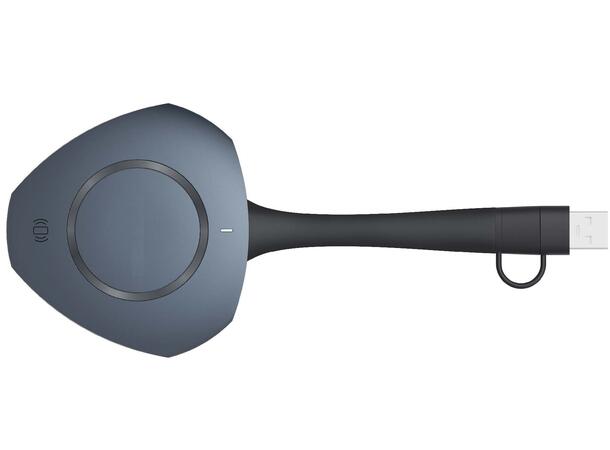

Zynage WD126 Wireless Dongle
The Zynage WD126 Wireless Dongle enables seamless wireless content sharing with all Zynage displays. With a single button press, users can instantly share their screen. It supports both BYOM and BYOD, and uses DisplayPort Alt Mode for stable, high-quality transmission.
Specifications
Ports
USB Type-C 1
USB Type-A (adapter) 1
Video
Default Resolution: 1920 × 1080 @ 30Hz
Maximum Resolution: Up to 3840 × 2160 @ 30Hz
Touch Back Support: Yes
Connectivity
Bluetooth
Version: 5.2
Frequency: 2.4 GHz
Range: 0–12 m
Wi-Fi
Standard: 802.11a / n / ac / ax
Frequency: 5 GHz
Range: 0–12 m
Performance & System
Max Connection Distance: 12 m
Operating Systems: Windows 10 / 11, macOS 10.12+
Startup Time: = 5 s
Cold Start Time: = 12 s
Disconnect Time: 1 s
Transmission Delay: = 120 ms
Power
Power Supply: 5V @ 500 mA
Power Consumption: 2.5 W
Environmental Conditions
Operating Temperature: 0°C – 40°C
Operating Humidity: 10% – 90% RH
Storage Temperature: -20°C – 60°C
Storage Humidity: 10% – 90% RH
Physical
Dimensions (L × W × H): 184 × 78.7 × 19.4 mm
Package Dimensions: 196 × 110 × 28 mm
Weight: 233 g
