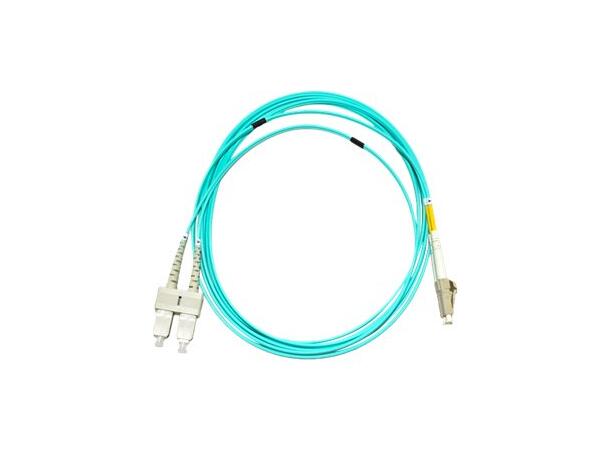

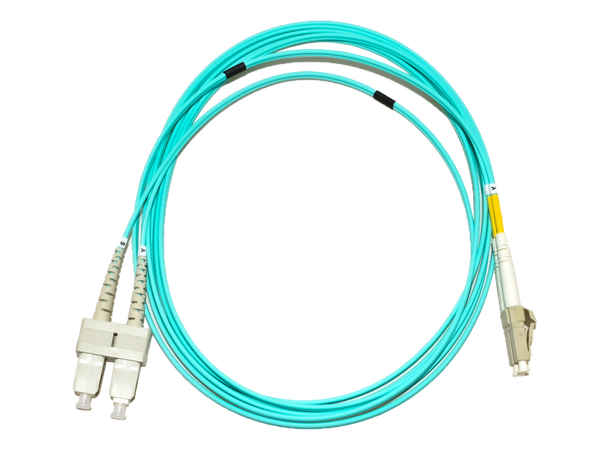

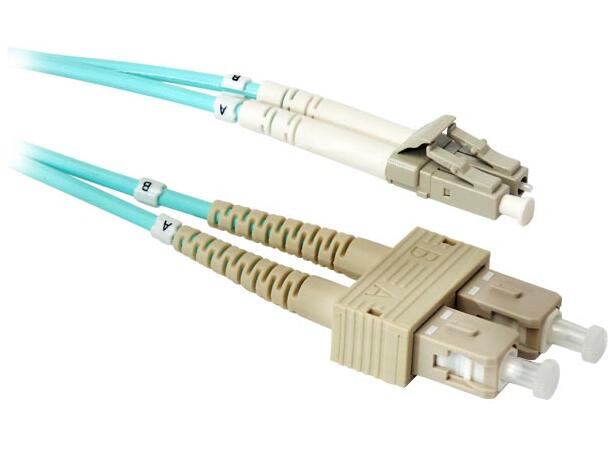

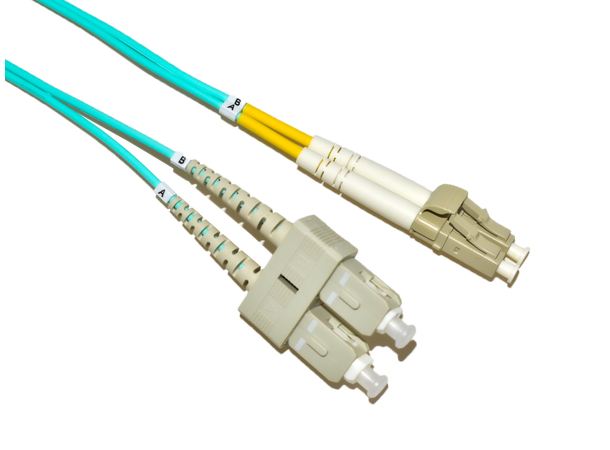

LinkIT fiberpatch OM3 LC/SC DPX 0.2m
MM | 50/125 | Duplex | LSZH | Aqua
Om3 is a cost-effective fiber cable solution for short transmission
- OM3 Duplex cable
- Multimode
- LSZH
- Aqua
Technical documentation
Cost-effective fiber cable solution for card transmission. Our OM3 multimode fiber patch cords are 100% tested and certified. Designed for high-speed and older networks such as Gigabit Ethernet and Fiber Channel, they support 10G data speeds of up to 300m and 40 / 100Gb up to 100m.
Main Specifications
| Length (m) | 0.2 |
|---|
| Color | Aqua |
|---|
| Category | OM3 |
|---|
| Brand | LinkIT |
|---|

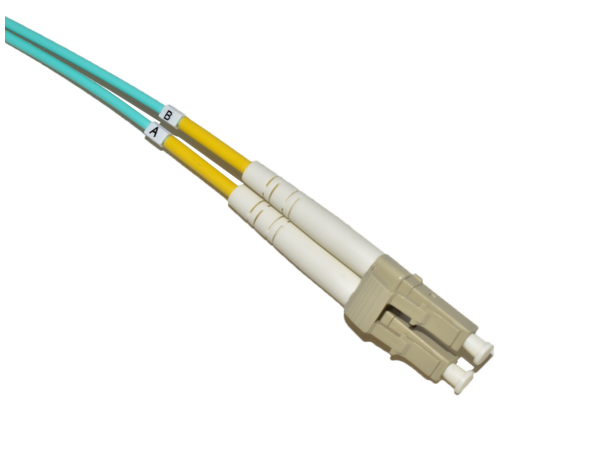

| Connector type 1 | LC |
|---|

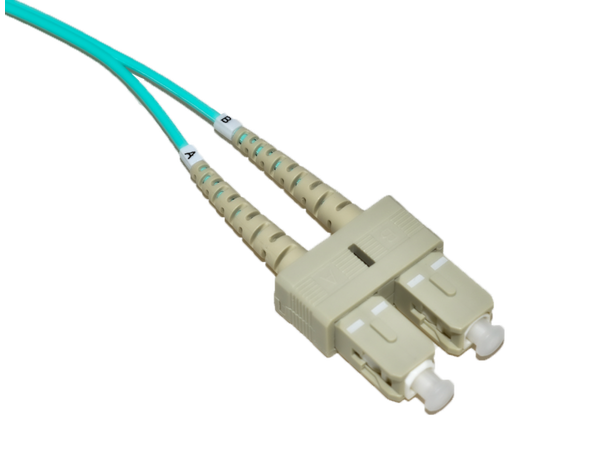

| Connector type 2 | SC |
|---|
| Polishing contact 1 | UPC |
|---|
| Polishing contact 2 | UPC |
|---|
| Cable type | Duplex |
|---|
| Number of fibers | 2 |
|---|
| Core Diameter (um) | 50/125 – Multimode |
|---|
| Wave length (nm) | 850/1300 |
|---|
Extended Specifications
| Maximum bend (mm) | 2 |
|---|
| Oil resistant | No |
|---|
| EAN | 7072662023126 |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Optical Return Loss (dB) | =35dB |
|---|
| Halogenfree | Yes |
|---|
| Fire retardant version | Yes |
|---|
| Cable Diameter (mm) | 2 |
|---|
| Certifications | CE, RoHS |
|---|
| Transmission speed | 10Gbps |
|---|
| Insertion Loss (dB) | = 0.3dB |
|---|
| Operating Temperature | -40°C to +75°C |
|---|
| Storage Temperature | -40°C to +75°C |
|---|
| Fire properties | IEC 60332-1-2, IEC 60754-1 , IEC 61034, IEC-60332-3-24 |
|---|
| Bending radius (mm) | 20mm |
|---|
