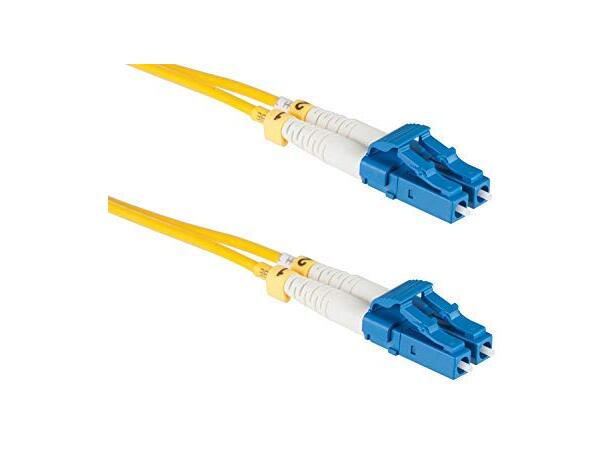

LinkIT fiber patch OS2 LC/LC Short Boot 5m
Short boot | Duplex | SM | LSZH
Compact OS2 LC–LC (UPC) duplex fiber patch cord, 5 meters, with short boot connectors for improved flexibility and space efficiency in high-density racks and patch panels. Made with G657A2 9/125 µm singlemode fiber, LSZH halogen-free jacket, and fire-retardant materials. Ensures low insertion loss (<0.3 dB) and high return loss (>55 dB), ideal for professional and high-performance network installations.
- Fiber patch
- OS2 (Single Mode) 9/125
- LC/UPS - LC/UPC Duplex
- Halogen-free (LSZH)
- Yellow
Main Specifications
| Length (m) | 5 |
|---|
| Color | Yellow |
|---|
| Category | OS2 |
|---|
| Brand | LinkIT |
|---|
| Connector type 1 | LC |
|---|
| Connector type 2 | LC |
|---|
| Polishing contact 1 | UPC |
|---|
| Polishing contact 2 | UPC |
|---|
| Cable type | Duplex |
|---|
| Number of fibers | 2 |
|---|
| Core Diameter (um) | 9/125 Singlemode |
|---|
| Wave length (nm) | 1310/1550nm |
|---|
Extended Specifications
| Certifications | CE, RoHS |
|---|
| Maximum bend (mm) | 20 |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Halogenfree | Yes |
|---|
| Oil resistant | No |
|---|
| Fire retardant version | Yes |
|---|
| Cable Diameter (mm) | 2 |
|---|
| Optical Return Loss (dB) | > 55 |
|---|
| Insertion Loss (dB) | < 0.3 |
|---|
| Operating Temperature | -40º ~ +75ºC |
|---|
| Storage Temperature | -40º ~ +75ºC |
|---|
| Fire properties | IEC 60332-1-2, IEC 60754-1 , IEC 61034, IEC-60332-3-24 |
|---|
| Bending radius (mm) | 20mm |
|---|
| Tensile loads (N) | 150N |
|---|
