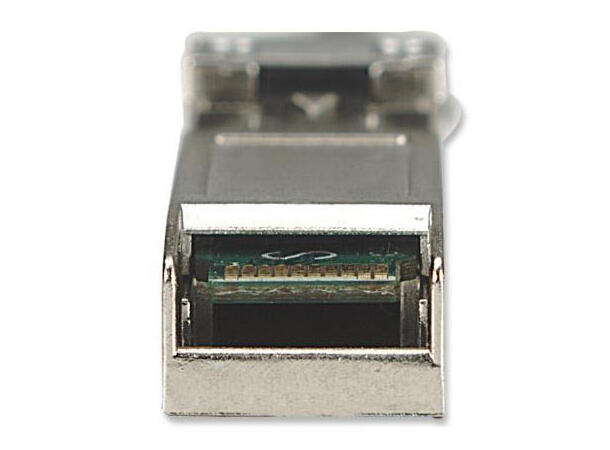

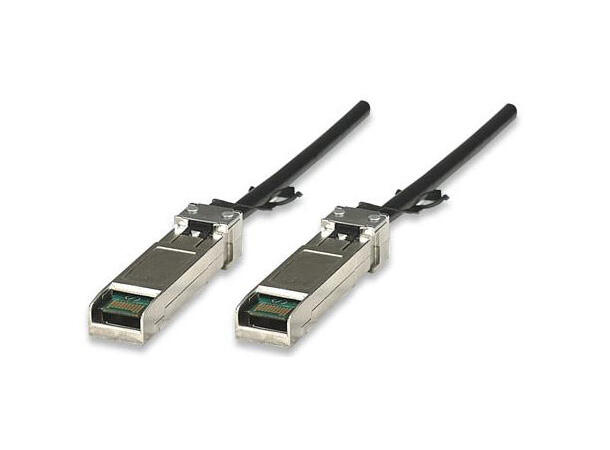

LinkIT SFP+ 10Gbps DAC 5m Cisco, Passiv, AWG 24, SFF-8402, SFF-8432
The LinkIT 5-meter passive SFP+ DAC cable offers a cost-effective and energy-efficient solution for 10G Ethernet connectivity. Supporting data rates up to 10.3125 Gbps, this cable is compliant with both the SFF-8402 and SFF-8432 standards. It features a 20-pin hot-pluggable SFP+ interface and is engineered for optimal signal integrity and minimal electromagnetic interference (EMI). Built with AWG 24 conductors and RoHS compliant, it operates reliably within a temperature range of 0 to 70°C. Designed as an equivalent to the Cisco SFP-H10GB-CU5M, it is an ideal choice for data centers and enterprise networking environments.
PRODUCT FEATURES
- Up to 10. 3125 Gbps data rate
- Up to 7 meter transmission
- Hot-pluggable SFP 20PIN footprint
- Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
- Compatible to SFF-8402 and SFF-8432
- Temperature Range: 0~ 70°C
- RoHS Compatible
- Equal to SFP--H10GB-CU5M
Benefits
- Cost-effective copper solution
- Lowest total system power solution
- Lowest total system EMI solution
- Optimized design for Signal Integrity
APPLICATIONS
