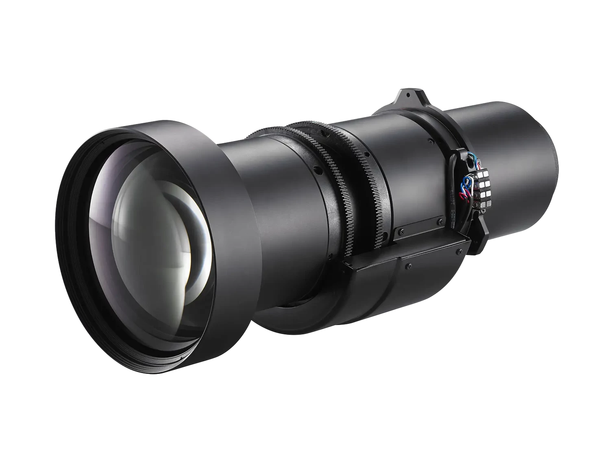

Motorised Long throw Zoom Interchangeable Lens
The BX-CTA22 long throw lens is ideal for distance installations and live venue entertainment which require a long distance from projector to screen.
This lens has a throw ratio of 2 ~ 4:1 and can produce an image size of 50" up to 1000"
2 ~ 4:1 throw ratio, project 1000" wide image from over 86m away
Designed for the Optoma ZU1700, ZU1900, ZU2200 Ultra Bright DuraCore laser projectors
Perfect for entertainment installations & building projection where distance projection is needed
Full lens memory and a flexible 2x Zoom enable installation flexibility
General
| Net weight | 1.67 kg |
| Gross weight | 2.17 kg |
Lens
| Throw ratio (min) | 2 |
| Throw ratio (max) | 4 |
| Min throw distance | 2.1 |
| Max throw distance | 84.86 |
| f-stop (min) | 2.2 |
| f-stop (max) | 2.75 |
| Focal length | 42.4 - 84.5mm |
| Min screen size | 50 |
| Max screen size | 1,000 |
| Zoom type | Motorised |
| Zoom | 2 |
| Motorised lens | Yes |
