Ubiquiti UniFi Gateway Max 2.5G
Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
Up to 1.5 Gbps routing with IDS/IPS

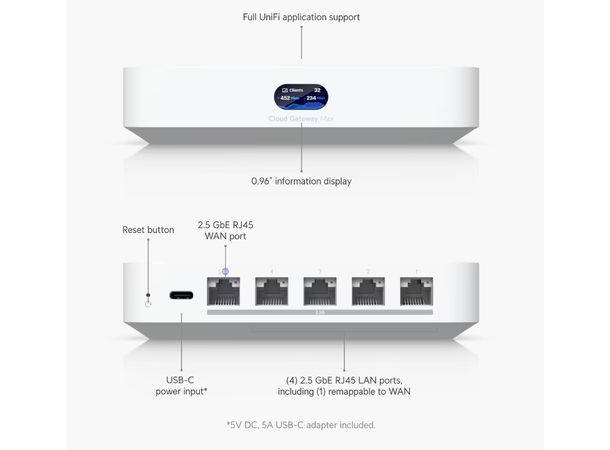

(1) 2.5 GbE WAN port
(4) 2.5 GbE LAN ports, including (1) remappable to WAN
USB-C powered (adapter included)
Managed with UniFi Network 8.1.113 and later
Key Specifications
| Feature |
Details |

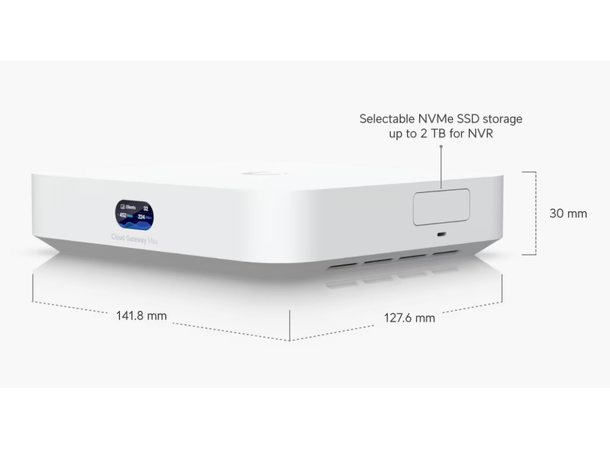

| Dimensions |
141.8 x 127.6 x 30 mm |
| Max WAN Ports |
4 (1 default + 1 remappable) |
| Port Layout |
5 x 2.5GbE RJ45 (WAN/LAN) |
| Managed Devices |
30+ UniFi Devices |
| Managed Cameras |
15 HD / 8 2K / 5 4K |
| Firewall & Security |
Layer 7 firewall, DPI, IDS/IPS, Content Filtering |
| IDS/IPS Throughput |
2.3 Gbps |
| VPN Support |
WireGuard, OpenVPN, IPsec, Teleport, Site Magic |
| NVR Storage |
Selectable NVMe SSD up to 2 TB |
| Power Method |
USB-C (5V DC / 5A), adapter included |
| Weight |
460 g (without SSD), 519 g (with SSD) |
| Management Interfaces |
Ethernet, Bluetooth |
| Display |
0.96" status display (LCM) |
