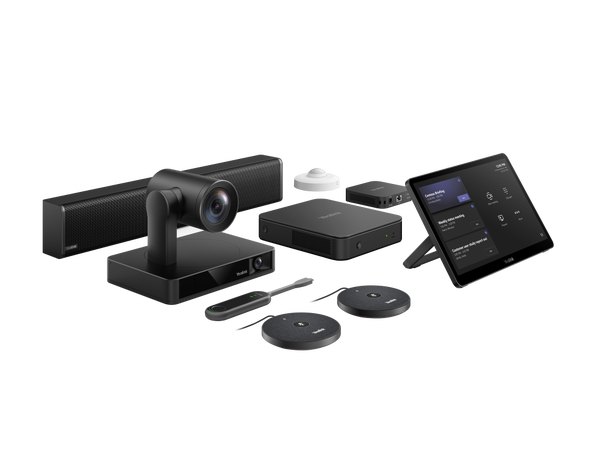

Yealink MVC860-C5-713 Teams System for Medium - Large rooms Yealink MVC860-C5-713 Teams System for Medium - Large rooms Yealink MVC860-C5-713 Teams System for Medium - Large rooms

Yealink MVC860-C5-713

Teams System for Medium - Large rooms

Varenr: 131652
Alt. varenr: MVC860-C5-713
BeskrivelseEkstern InfoTeknisk infoTilbehørAlternativer
Beskrivelse

Yealink MVC860-C5-713

Teams System, Medium and Large rooms



Yealink MVC series are native and easy-to-use video conferencing solutions specially designed for Microsoft Teams rooms. The MVC series provides a full-scene video conference solution to cover all of the meeting rooms from small to large. According to the unique characteristics of the video conferencing room, a high-performance mini-PC is specially released. In the design of mini-PC, it takes into account both aesthetics and practicability, that fully integrating the cable management with itself to provide a flexible and reliable deployment solution for any meeting room. The MVC series features the native Microsoft Teams-tailored user interface that is easy to be operated with close-to-zero learning curve, and you just walk into the meeting room and start your scheduled Teams or Skype for Business meeting with one-touch join. Yealink MVC860 includes a 4K UVC86 USB PTZ camera with 12x optical zoom, MCore, MTouch II. You can also select VCM34/VCM38/CPW90 array microphones to work with MVC860.



Key Features and Benefits



Native Microsoft Teams-tailored user interface, smooth conference experience

Native Microsoft Teams-tailored user interface offers a one-touch meeting join. Designed with the idea of multi-function all-in-one, the MTouch II touch panel allows you easily perform call control, camera control, content sharing and other functions. At the same time, MTouch II has a built-in Human Motion Sensor that the conference system can be automatically waken up and you can immediately start the conference.



Smooth tracking feature & multiple audio solution

Yealink UVC86 camera allows for the auto-framing of all participants present at a meeting, speaker-tracking of the speaker talking at a meeting, and presenter-tracking of the presenter at a meeting, freeing your hands and focusing on the meeting itself. Meanwhile, with theYealink camera control plug-in and camera presets supported, the mechanical pan, tilt and zoom can be easily done quietly in one step. Empowered with 12x optical zoom, UVC86 supports 4K video calls that conducts business to capture everyone in the meeting room clearly.the UVC86 delivers face to face, intelligent and smooth video experience by precisely reproducing every moment and detail, always showing the best picture of your room. You can also select VCM34/VCM38/CPW90 array microphones to work with MVC860. Also, Yealink Noise Proof technology effectively eliminates background distractions and noises that you can enjoy a crystal-clear voice even in a noisy environment.



Content sharing in real time

The unique wireless content sharing solution provides participants with maximum flexibility, that a one-click content sharing can be simply realized by plugging into the WPP20 only. With a high resolution of 1080P/30 frames, it provides users with a better content sharing experience. Besides, the wired content sharing is also available by connecting to the USB-C port or HDMI port.



Simple to deploy, easy to use

With the VCH port, MCore is specially designed for the video meeting rooms that the deployment can be easily extended. At the same time, its all-in-one design with the feature of cable management ensure the stability of the wire connection, and the most appropriate deployment can be achieved according to the layout of the meeting room. One CAT5e is totally enough to connect the TV area and the conference table area and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifying the deployment but also effectively reducing deployment costs.



Manage your devices remotely

This solution supports Yealink Device Management Platform/Cloud Service, you can flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video devices peripherals on this platform remotely.





Specifications



Package Content

  • MCore Pro Mini PC
  • MTouch Plus
  • UVC86 USB PTZ camera
  • RoomSensor
  • Two VCM35 array microphones
  • MSpeaker II
  • WPP30
  • RCH40 Poe Switch for audio connection



Preload

  • Windows 10 IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
  • Yeallink RoomConnect MCore

MTouch Plus

  • 11.6-inch Anti-fingerprint & Anti-glare IPS Screen
  • 1920 × 1080 Resolution
  • Supports Power Supply for PC (Content Sharing)
  • Three Deployment Methods



UVC86 USB PTZ Camera

  • 4K camera
  • 20.4 × HD zoom (12x optical, 1.7× digital)
  • Field of view (diagonal): PTZ camera: 90° DFOV, 81° HFOV, 50° VFOVpanoramic camera: 120° DFOV, 110° HFOV, 78° VFOV
  • Auto Framing
  • Speaker Tracking
  • Presenter Tracking
  • Camera presets
  • Pan range: 200°
  • Tilt range: 130°
  • 1 x HDMI out
  • 1 x Yealink VCH port (RJ45) for audio devices, BYOD extender or Yealink Codec
  • 1 x USB 3.0 Type-B
  • 1 x USB 2.0 Type-A
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot



VCM35 Array Microphones

  • Optima HD Audio
  • Yealink Full Duplex Technology
  • Yealink Acoustic Echo Canceling
  • Yealink Noise Proof Technology
  • 6m radius voice pickup range
  • Muting the microphone with touchpad



Yealink Mspeaker II

  • Frequent response: 100Hz - 20KHz
  • RMS: 10W
  • 1 x VCH (RJ45), Supports PoE
  • 1 x Line-in (3,5mm)
  • Built-in Bluetooth



RoomSensor

  • Detection
    - Occupancy
    - Temperature
    - Humidity
    - Light
  • Occupancy Type: Passive Infrared Tech
  • Protocol: Bluetooth BLE 5.2
  • Frequency band: 2.4GHz
  • Reach: Max. 30m (100 ft)
  • Multi-connectivity: Maximum 4 simulatenously, BLE mesh
  • Battery life: 5 year
  • Button: 1 x config button
  • Led: 1 x LED
  • IP Rating: IP20



WPP30

  • Decoder: Up to 4k/30fps
  • Power Consumption: 2,aW (Typical)
  • Button: START/STOP button x 1
  • Frequenzy: 2,4GHz/5GHz
  • 4-Screen Casting
  • Plug and Play
Ekstern Info
Teknisk info

Produktinformasjon

Egenskaper WiFi
Farge Svart
Operativsystem Windows 10
Utgang HDMI
