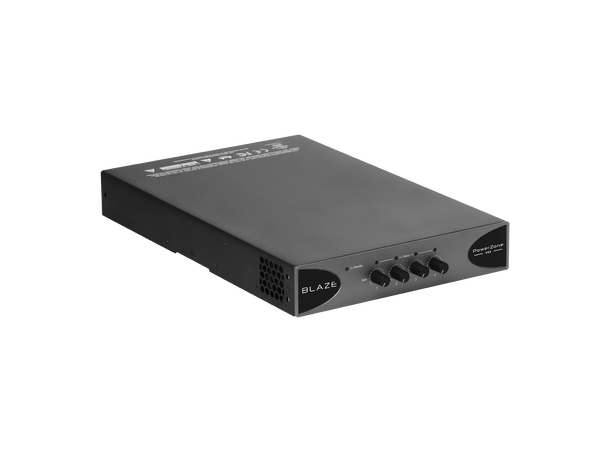

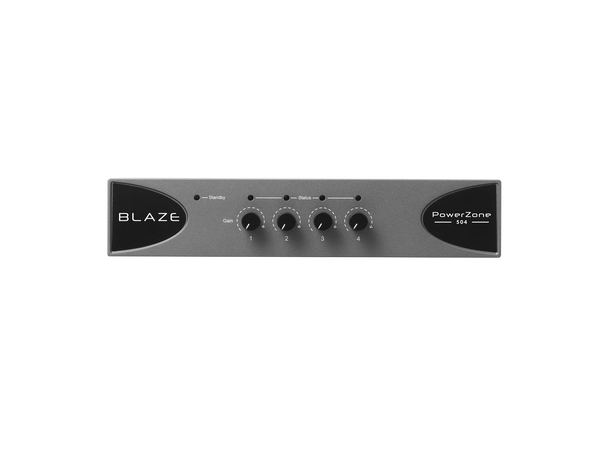

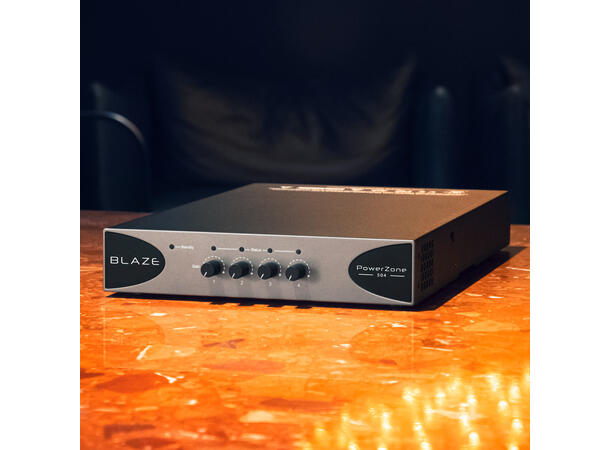

The PowerZone 504 is a 4 x 125 Watt power amplifier in a half width, 1U format. It drives both low impedance (4O to 16O) and constant voltage (70V/100V) loudspeaker loads. Each output channel can be independently configured to drive either Lo-Z or Hi-Z and automatic power sharing enables the total 500 Watts to be shared proportionately across each pair of output channels (so 4 x 125W/channel or 2 x 250W/channel.

With a small form factor of just 22 cm x 33 cm – it’s one of the most compact 4 channel amplifiers in its power class.

Key Features:

• Configure any output in Low or High impedance – share total power as you need it

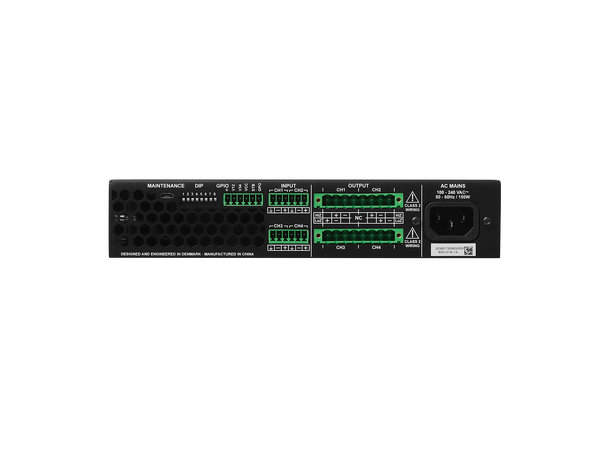

• DIP Switches allow you to configure on site – with GPIO connectors for external controllers
• Ultra-compact form factor means it can be installed in spaces where others cannot
• Class leading energy efficiency and long-term low cost of ownership
• Powered by Pascal UMAC™ Class-D technology
