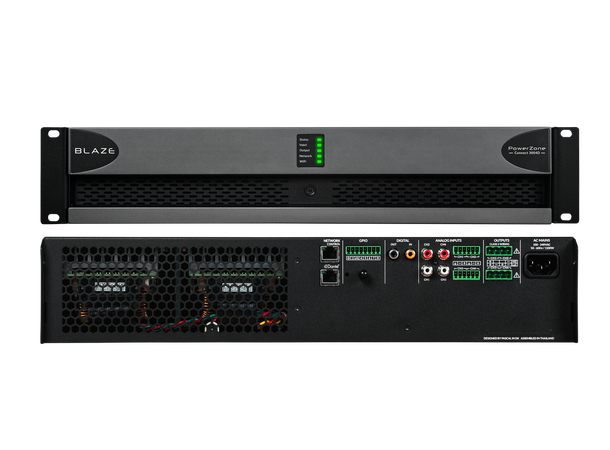

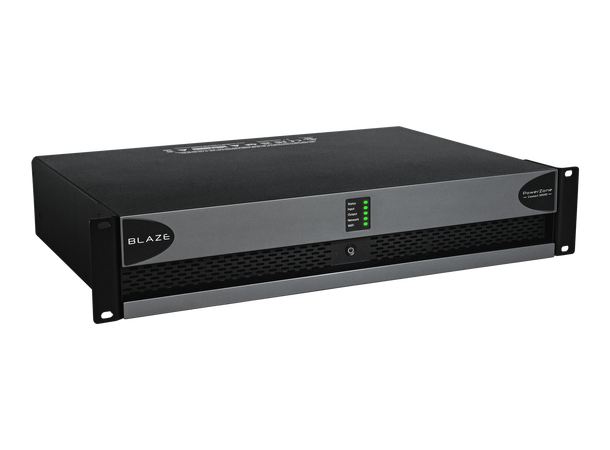

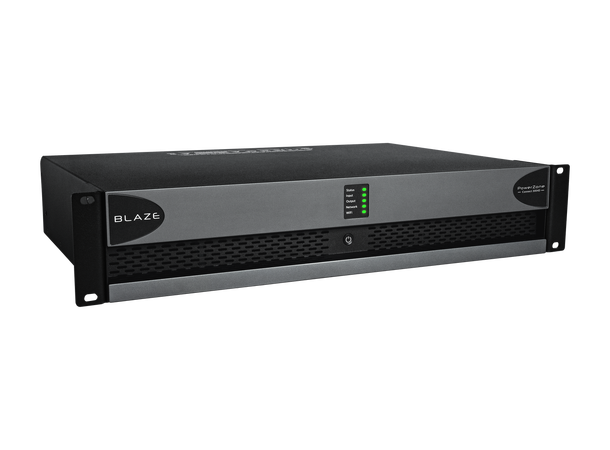

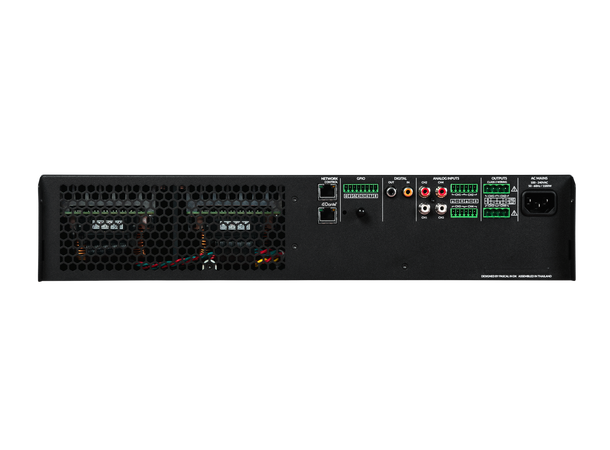

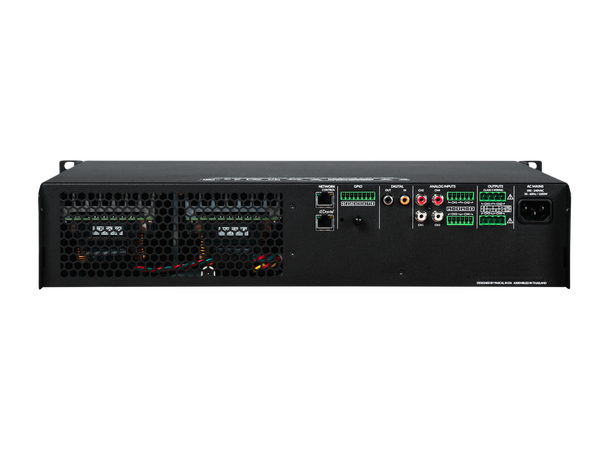

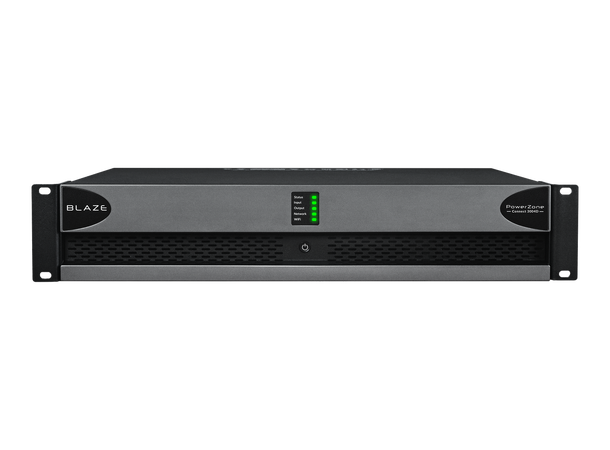

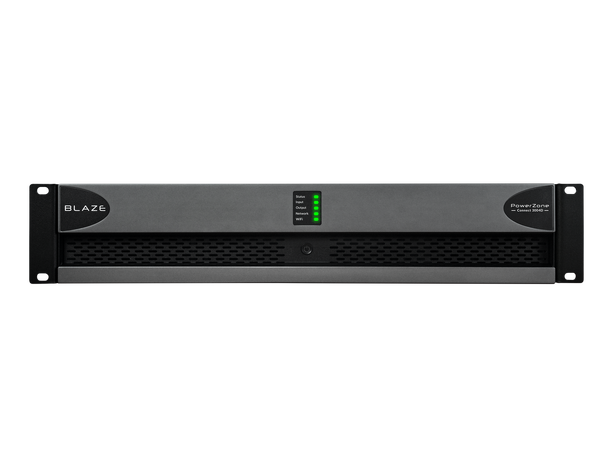

Blaze Audio PowerZone Connect 3004D EU
4x750W @2-4 4x400W @ 8 2x1500W @ 100V
The PowerZone Connect 1002, 1502, 2004 & 3004 are solid, DSP amplifiers that deliver flexible, reliable power output with total system power offerings of 1000W, 1500W, 2000W and 3000W in a full
rack, 2U format.

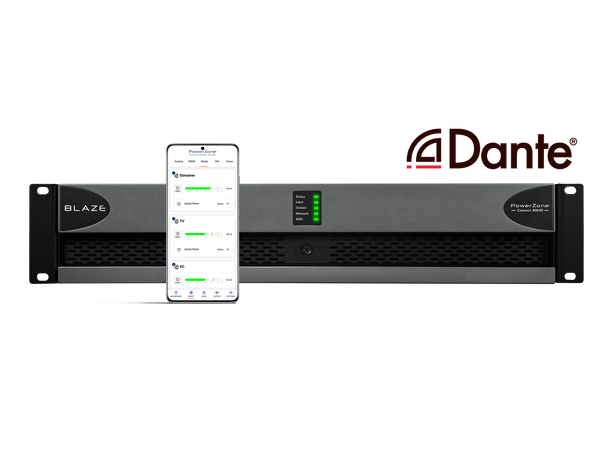

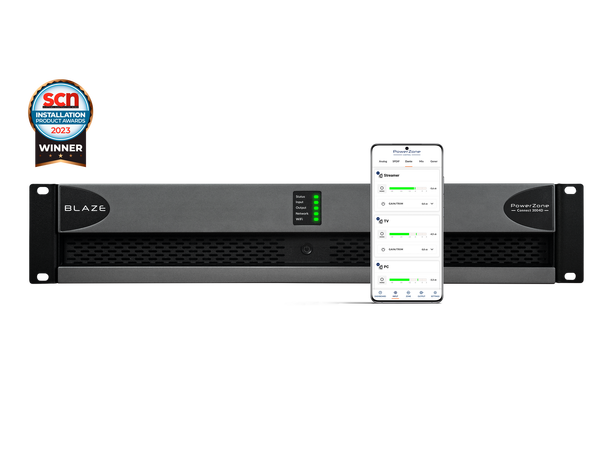

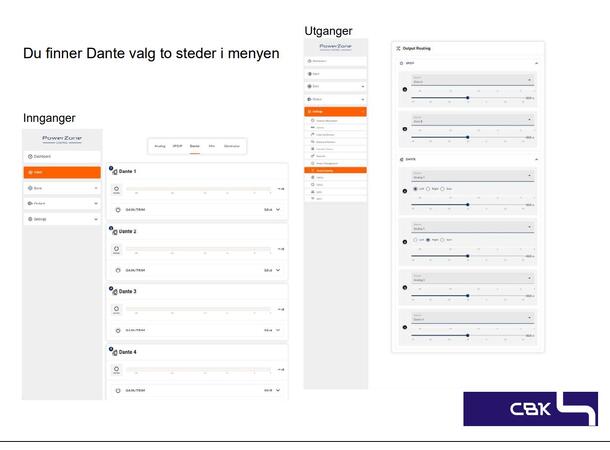

The system set-up can be performed wired or wirelessly and allows access to the PowerZone Control web app for easy system and audio configuration; manage sound zones, inputs/outputs, firmware
updates, import of speaker presets and access to professional EQ settings. Configuration takes only a few minutes and can even be set up from your phone’s browser.
With PowerZone Control, applying speaker presets takes just seconds, and the impact on the installed sound is amazing.
Blaze also provide custom drivers for several popular specialist control and automation systems. As a result, PowerZone Connect amplifiers can be specified in projects that use these advanced controllers.
Key Specifications
- A series of smart full matrix DSP amplifiers with complete configuration via the intuitive web app – you can simply set up everything from your phone.
- Connect to the system with PowerZone Control – configure the complete system - input sources & output channels, set up sound Zones, EQ, routing, import of speaker presets and much more.
- Optimal hybrid power performance of both Lo-Z (2O to 16O) and Hi-Z (constant voltage) meaning one flexible PowerZone Connect amplifier can be used in many different, configurations and set–ups.
- The PowerZone Connect series delivers classleading energy efficiency reducing lifetime cost of ownership.
- Link multiple amps – via S/PDIF (Master /Slave)
- Pascal’s UMAC Class D amplifier technology is inside, with market proven, ultra-reliable L-PRO amplifier modules
| Model |
PowerZone Connect 1002 |
PowerZone Connect 1502 |
PowerZone Connect 2004 |
PowerZone Connect 3004 |
| Channels |
2 x Lo-Z/1 x Hi-Z |
2 x Lo-Z/1 x Hi-Z |
4 x Lo-Z/2 x Hi-Z |
4 x Lo-Z/2 x Hi-Z |
| Output
Power @ 2O |
2 x 500 W (SE)* |
2 x 750 W (SE) |
4 x 500 W (SE) |
4 x 750 W (SE) |
| Output
Power @ 4O |
2 x 500 W (SE) |
2 x 750 W (SE) |
4 x 500 W (SE) |
4 x 750 W (SE) |
| 1 x 1000
W (BTL)** |
1 x 1500 W (BTL) |
2 x 1000 W (BTL) |
2 x 1500 W (BTL) |
| Output
Power @ 8O |
2 x 250 W (SE) |
2 x 400 W (SE) |
4 x 250 W (SE) |
4 x 400 W (SE) |
| 1 x 1000
W (BTL) |
1 x 1500 W (BTL) |
2 x 1000 W (BTL) |
2 x 1500 W (BTL) |
| Output
Power @ 70V |
1 x 1000 W (BTL) |
1 x 1200 W (BTL) |
2 x 1000 W (BTL) |
2 x 1200 W (BTL) |
| Output
Power @ 100V |
1 x 1000 W (BTL) |
1 x 1500 W (BTL) |
2 x 1000 W (BTL) |
2 x 1500 W (BTL) |
| Total
System Power |
1000 W |
1500 W |
2000 W |
3000 W |
| Power
Consumption |
350 W |
350 W |
700 W |
700 W |
| Output
Voltage |
65 Vp / 130 Vpp (SE unloaded)
130 Vp / 260 Vpp (BTL unloaded) |
80 Vp / 160 Vpp (SE unloaded)
160 Vp / 320 Vpp (BTL unloaded) |
65 Vp / 130 Vpp (SE unloaded)
130 Vp / 260 Vpp (BTL unloaded) |
80 Vp / 160 Vpp (SE unloaded)
160 Vp / 320 Vpp (BTL unloaded) |
| Weight |
5.9 kg |
5.9 kg |
7.4 kg |
7.4 kg |
| Dimensions |
88 x 440 x 332 mm
(3.5 x 17.3 x 13.1 in) |
Output
Circuitry |
UMAC™ Class D - full
bandwidth PWM modulator with ultra-low distortion |
Signal
To Noise-Ratio |
>108 dB
(A-weighted, 20 Hz-20 kHz, 8 O load) |
THD+N
(typical) |
< 0.05 % (20 Hz-20
kHz, 8 O load, 3 dB below rated power) |
Frequency
Response |
20 Hz-20 kHz (+0/-0.5
dB (8 O load, 3 dB below rated power) |
| Protection
Circuits |
Short circuit -, DC
-, Undervoltage -, Temperature - and Overload protection |
Power
Supply |
UREC™ universal mains
switch mode power supply with Power Factor Correction (PFC) and standby
converter |
Operating
temperature |
0-40° C |
| Operating
Voltage/Frequency |
Universal Mains, 100
V-240 V, 50 Hz-60 Hz |
Standby
Consumption |
<0.5 W |
Accessories |
2x rack ears, 4 x
adhesive feet |
Power
Ratings |
1 % THD @ 120 Vac and
230 Vac |
