HH Sonekontroll vegg MZ-C2 EU Hvit

MZ-serie volum kildevalg 1-4 soner

Varenr: 131733
Alt. varenr: MZ-C2-EU-WH
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

HH MZ Series - MZ-C1EU - Wall Volume Control

Controller - EU Spec - White



Description

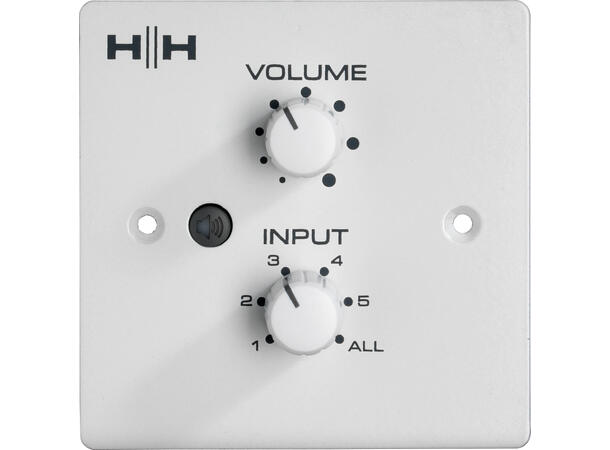

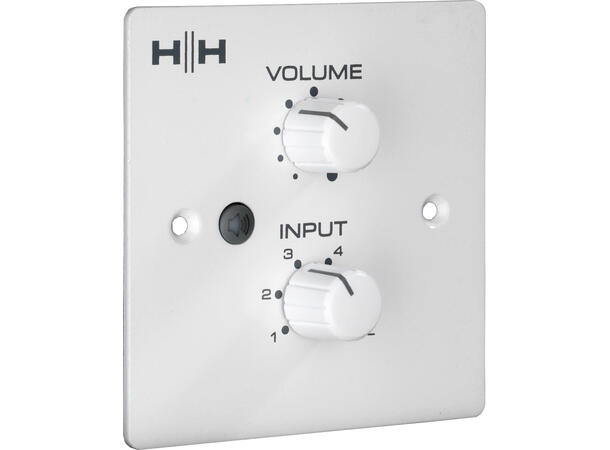

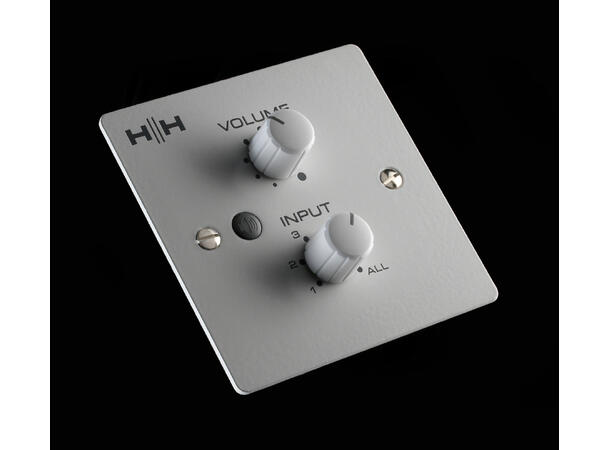

The MZ-C2 is a wall mounted volume controller and source selector for the MZ series zone distribution amplifiers. The MZ-C2 allows the installer to select which zones the volume control is assigned to, and has a handy quick illuminated mute option to avoid moving the volume control. Front mounted source selector control allows the user to select which input is routed to the selected zone/s. Connected using standard Cat5 cable, installation is quick and easy. MZ-C2-EU-BK is finished in satin black and fits a standard UK sized single pattress box. White version available (MZ-C2-EU-WH)



System Type Wall volume controller with source select
Input Connector RJ45 LAN connector for connection to zone amplifier (standard CAT5e cable)
Output Connector RJ45 LAN connector to connect other wall controllers in daisy chain (standard CAT5e cable)

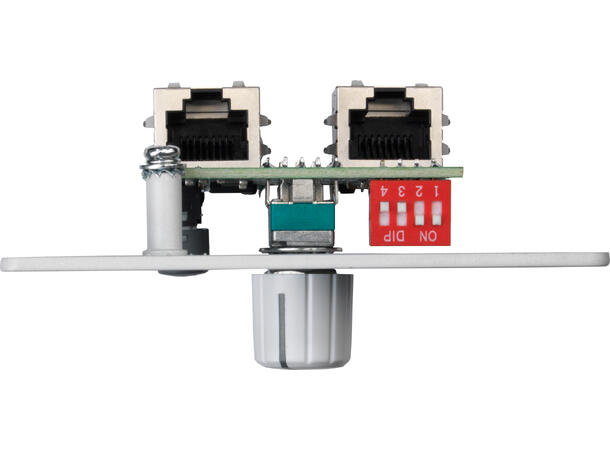

Controls Volume and source control; mute switch; zone select DIP switch
Mounting Depth 36mm minimum depth required
Unit Dimensions (Hwd) 86 x 86 x 44mm (3.4" x 3.4" x 1.7")
Unit Weight 0.147kg, 0.3lbs
Carton Dimensions (Hwd) 165 x 475 x 255 mm (6.5" x 18.7" x 10"), 12pcs multipack
Packed Weight 4.5kg, 9.9lbs, 12pcs multipack
